KBR Düsen 1/8" gebohrt
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|
|
| 04.012B05 |
Rotierdüse Ø 12mm |
1/8" | 13 - 26 | 6 | 4 x 0.5 | 12 x 26 | 0.01 | 350 | ||||
| 04.012B06 |
Rotierdüse Ø 12mm |
1/8" | 13 - 26 | 7 | 4 x 0.6 | 12 x 26 | 0.01 | 350 | ||||
| 04.012B07 |
Rotierdüse Ø 12mm |
1/8" | 13 - 26 | 9 | 4 x 0.7 | 12 x 26 | 0.01 | 350 | ||||
| 04.012B09 |
Rotierdüse Ø 12mm |
1/8" | 13 - 26 | 12 | 4 x 0.9 | 12 x 26 | 0.01 | 350 | ||||
| 04.012B12 |
Rotierdüse Ø 12mm |
1/8" | 13 - 26 | 16 | 4 x 1.2 | 12 x 26 | 0.01 | 350 | ||||

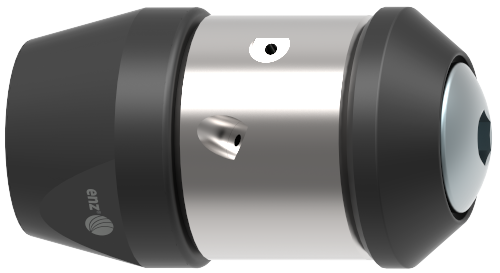

| 04.016A04 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 6 | 4 x 0.4 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A05 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 7 | 4 x 0.5 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A06 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 9 | 4 x 0.6 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A07 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 12 | 4 x 0.7 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A08 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 14 | 4 x 0.8 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A09 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 17 | 4 x 0.9 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A10 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 21 | 4 x 1.0 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A11 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 25 | 4 x 1.1 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016A13 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 33 | 4 x 1.3 | - | * | 16 x 30 | 0.03 | 350 | ||

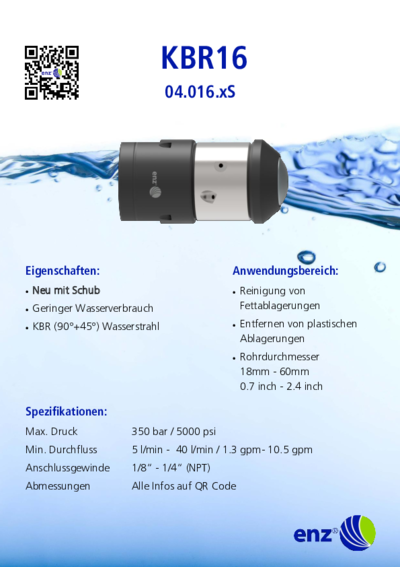

| 04.016AS |
Rotierdüse Ø 16mm mit Schub |
1/8" | 18 - 60 | 24 | 4 x 0.8 | 3 x 0.8 | * | 16 x 31 | 0.03 | 350 |
KBR Düsen 1/8" gebohrt
KBR Düsen 1/4" gebohrt
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|
| 04.016B04 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 6 | 4 x 0.4 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B05 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 7 | 4 x 0.5 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B06 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 9 | 4 x 0.6 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B07 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 12 | 4 x 0.7 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B08 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 14 | 4 x 0.8 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B09 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 17 | 4 x 0.9 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B10 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 21 | 4 x 1.0 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B11 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 25 | 4 x 1.1 | - | * | 16 x 30 | 0.03 | 350 | |
| 04.016B13 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 40 | 4 x 1.3 | - | * | 16 x 30 | 0.03 | 350 | |

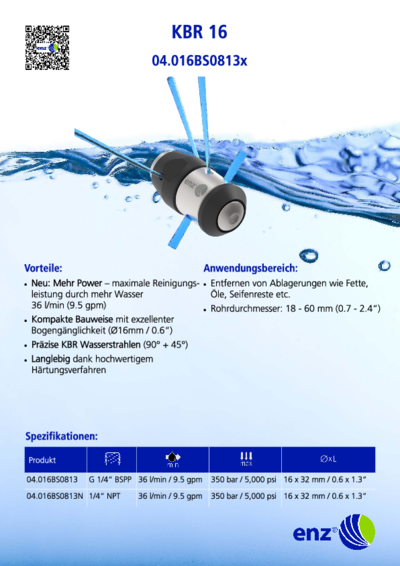

| 04.016BS |
Rotierdüse Ø 16mm mit Schub |
1/4" | 18 - 60 | 21 | 4 x 0.8 | 3 x 0.8 | * | 16 x 31 | 0.03 | 350 |
KBR Düsen 1/4" gebohrt
KBR Düsen 1/4"
KBR Düsen 3/8"
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|

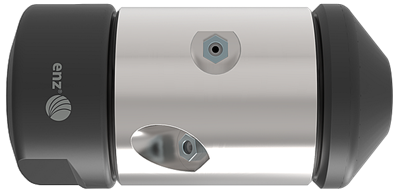

| 04.028B |
Rotierdüse Ø 28mm |
3/8" | 30 - 100 | 10 | 4 x M4 | - | * | 28 x 56 | 0.15 | 350 |
KBR Düsen 3/8"
KBR Düsen 1/2"
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|

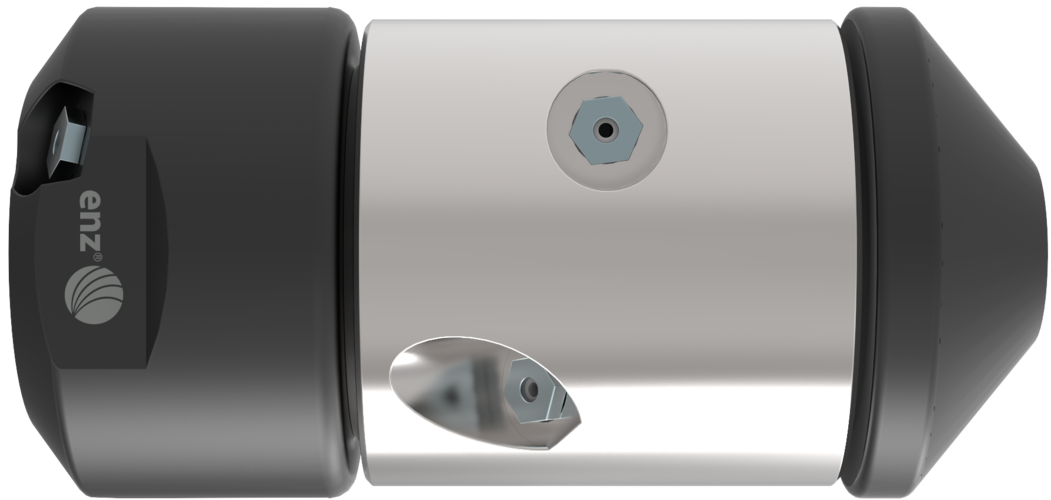

| 04.040A |
Rotierdüse Ø 40mm |
1/2" | 70 - 150 | 20 | 4 x M6 | - | * | 40 x 80 | 0.50 | 350 | |
| 04.040AS |
Rotierdüse mit Schubdüsen Ø 40mm |
1/2" | 70 - 150 | 40 | 4 x M6 | 3 x M6 | * | 40 x 80 | 0.50 | 350 | |

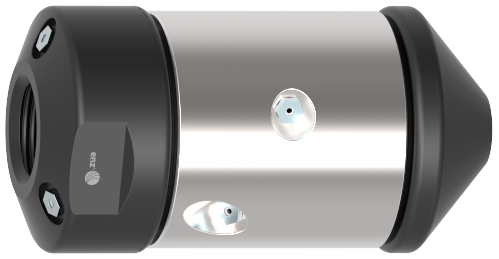

| 04.050A |
Rotierdüse Ø 50mm |
1/2" | 100 - 200 | 60 | 4 x M6 | - | * | 50 x 99 | 1.10 | 350 | |
| 04.050AS |
Rotierdüse mit Schubdüsen Ø 50mm |
1/2" | 100 - 200 | 70 | 4 x M6 | 3 x M6 | * | 50 x 99 | 1.10 | 350 |
KBR Düsen 1/2"
KBR Düsen 3/4"
