KBR nozzles

This allround enz® combination nozzle is excellent for flushing out pipes as well as adjoining lateral pipes at any angle. It only requires a very small pump capacity and uses 2 radial jets at a 90° angle to the pipe wall and 2 semi-radial retro-jets at a 45° angle. This combination allows both, a forward thrust of the nozzle and simultaneously, a flushing away of the waste material.

Applications

To remove organic deposits
To clean heat exchangers
Cleaning of fat deposits

KBR nozzles 1/8" drilled

Item number	Item name
04.012B05	Rotojet 12 mm	1/8"	13 - 26	6	4 x 0.5			12 x 26	0.01	350
04.012B06	Rotojet 12 mm	1/8"	13 - 26	7	4 x 0.6			12 x 26	0.01	350
04.012B07	Rotojet 12 mm	1/8"	13 - 26	9	4 x 0.7			12 x 26	0.01	350
04.012B09	Rotojet 12 mm	1/8"	13 - 26	12	4 x 0.9			12 x 26	0.01	350
04.012B12	Rotojet 12 mm	1/8"	13 - 26	16	4 x 1.2			12 x 26	0.01	350

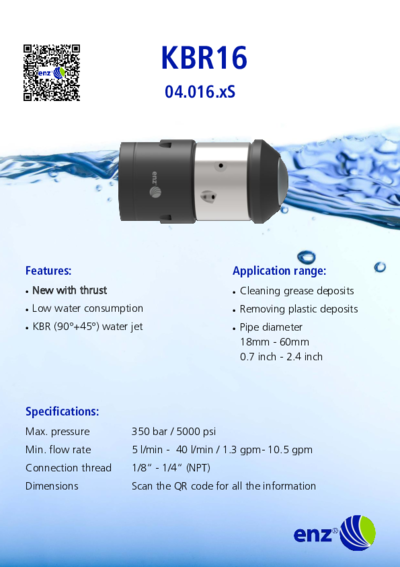

04.016A04	Rotojet 16mm	1/8"	18 - 60	6	4 x 0.4	-	*	16 x 30	0.03	350
04.016A05	Rotojet 16mm	1/8"	18 - 60	7	4 x 0.5	-	*	16 x 30	0.03	350
04.016A06	Rotojet 16mm	1/8"	18 - 60	9	4 x 0.6	-	*	16 x 30	0.03	350
04.016A07	Rotojet 16mm	1/8"	18 - 60	12	4 x 0.7	-	*	16 x 30	0.03	350
04.016A08	Rotojet 16mm	1/8"	18 - 60	14	4 x 0.8	-	*	16 x 30	0.03	350
04.016A09	Rotojet 16mm	1/8"	18 - 60	17	4 x 0.9	-	*	16 x 30	0.03	350
04.016A10	Rotojet 16mm	1/8"	18 - 60	21	4 x 1.0	-	*	16 x 30	0.03	350
04.016A11	Rotojet 16mm	1/8"	18 - 60	25	4 x 1.1	-	*	16 x 30	0.03	350
04.016A13	Rotojet 16mm	1/8"	18 - 60	33	4 x 1.3	-	*	16 x 30	0.03	350
04.016AS	Rotojet 16mm with thrust	1/8"	18 - 60	24	4 x 0.8	3 x 0.8	*	16 x 31	0.03	350

KBR nozzles 1/4" drilled

Item number	Item name
04.016B04	Rotojet 16mm	1/4"	18 - 60	6	4 x 0.4	-	*	16 x 30	0.03	350
04.016B05	Rotojet 16mm	1/4"	18 - 60	7	4 x 0.5	-	*	16 x 30	0.03	350
04.016B06	Rotojet 16mm	1/4"	18 - 60	9	4 x 0.6	-	*	16 x 30	0.03	350
04.016B07	Rotojet 16mm	1/4"	18 - 60	12	4 x 0.7	-	*	16 x 30	0.03	350
04.016B08	Rotojet 16mm	1/4"	18 - 60	14	4 x 0.8	-	*	16 x 30	0.03	350
04.016B09	Rotojet 16mm	1/4"	18 - 60	17	4 x 0.9	-	*	16 x 30	0.03	350
04.016B10	Rotojet 16mm	1/4"	18 - 60	21	4 x 1.0	-	*	16 x 30	0.03	350
04.016B11	Rotojet 16mm	1/4"	18 - 60	25	4 x 1.1	-	*	16 x 30	0.03	350
04.016B13	Rotojet 16mm	1/4"	18 - 60	40	4 x 1.3	-	*	16 x 30	0.03	350

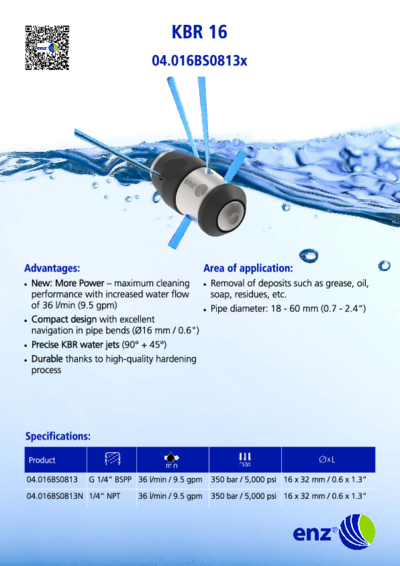

04.016BS	Rotojet 16mm with thrust	1/4"	18 - 60	21	4 x 0.8	3 x 0.8	*	16 x 31	0.03	350

KBR nozzles 1/4"

Item number	Item name
04.028A	Rotojet 28 mm	1/4"	30 - 100	10	4 x M4	-	*	28 x 56	0.20	350
04.028AS	Rotojet with thrust jets 28 mm	1/4"	30 - 100	10	4 x M4	3 x M4	*	28 x 56	0.20	350

KBR nozzles 3/8"

	Item number	Item name
	04.028B	Rotojet 28 mm	3/8"	30 - 100	10	4 x M4	-	*	28 x 56	0.15	350

KBR nozzles 1/2"

Item number	Item name
04.040A	Rotojet 40 mm	1/2"	70 - 150	20	4 x M6	-	*	40 x 80	0.50	350
04.040AS	Rotojet with thrust jets 40 mm	1/2"	70 - 150	40	4 x M6	3 x M6	*	40 x 80	0.50	350
04.050A	Rotojet 50 mm	1/2"	100 - 200	60	4 x M6	-	*	50 x 99	1.10	350
04.050AS	Rotojet with thrust jets 50 mm	1/2"	100 - 200	70	4 x M6	3 x M6	*	50 x 99	1.10	350

KBR nozzles 3/4"

Item number	Item name
04.050B	Rotojet 50 mm	3/4"	100 - 200	60	4 x M6	-	*	50 x 99	1.10	250
04.050BS	Rotojet with thrust jets 50 mm	3/4"	100 - 200	70	4 x M6	3 x M6	*	50 x 99	1.10	250

KBR nozzles 1" - 1 1/4"

Item number	Item name
04.060	Rotojet 60 mm	1"	100 - 300	80	4 x M8	3 x M8	*	60 x 111	1.60	250
04.100A	Rotojet 100 mm	1"	200 - 600	200	4 x M10	3 x M10	*	100 x 175	7.30	250
04.100B	Rotojet 100 mm	1 1/4"	200 - 600	200	4 x M10	3 x M10	*	100 x 175	7.30	250
