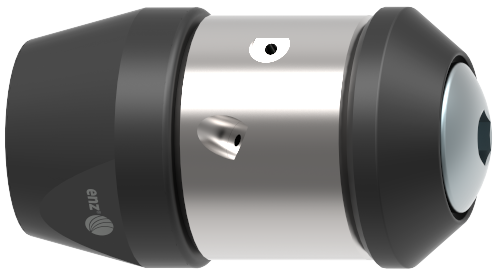

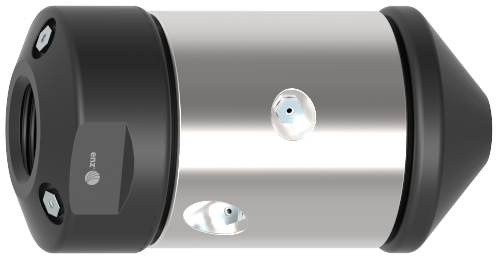

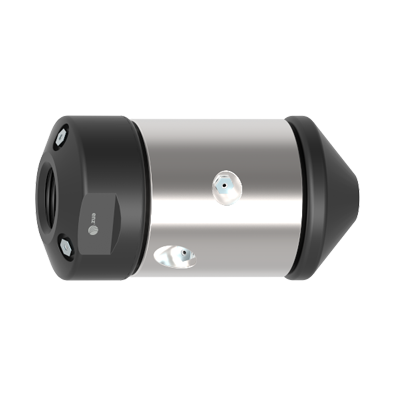

KBR nozzles

This allround enz® combination nozzle is excellent for flushing out pipes as well as adjoining lateral pipes at any angle. It only requires a very small pump capacity and uses 2 radial jets at a 90° angle to the pipe wall and 2 semi-radial retro-jets at a 45° angle. This combination allows both, a forward thrust of the nozzle and simultaneously, a flushing away of the waste material.

Applications

To remove organic deposits
To clean heat exchangers
Cleaning of fat deposits

KBR nozzles 1/8" NPT drilled

Item number	Item name
04.012B05N	Rotojet 0.5"	1/8" NPT	0.5 - 1	1.6	4 x 0.5			0.5 x 1.0	0.03		5,000
04.012B06N	Rotojet 0.5"	1/8" NPT	0.5 - 1	1.8	4 x 0.6			0.5 x 1.0	0.03		5,000
04.012B07N	Rotojet 0.5"	1/8" NPT	0.5 - 1	2.4	4 x 0.7			0.5 x 1.0	0.03		5,000
04.012B09N	Rotojet 0.5"	1/8" NPT	0.5 - 1	3.2	4 x 0.9			0.5 x 1.0	0.03		5,000
04.012B12N	Rotojet 0.5"	1/8" NPT	0.5 - 1	4.2	4 x 1.2			0.5 x 1.0	0.03		5,000
04.016A07N	Rotojet 0.6"	1/8" NPT	1 - 2	3	4 x 0.7			0.6 x 1.2	0.07		5,000
04.016A08N	Rotojet 0.6"	1/8" NPT	1 - 2	4	4 x 0.80			0.6 x 1.2	0.07		5,000
04.016A09N	Rotojet 0.6"	1/8" NPT	1 - 2	4.5	4 x 0.90			0.6 x 1.2	0.07		5,000
04.016A10N	Rotojet 0.6"	1/8" NPT	1 - 2	5.5	4 x 1.00			0.6 x 1.2	0.07		5,000
04.016A11N	Rotojet 0.6"	1/8" NPT	1 - 2	7	4 x 1.10			0.6 x 1.2	0.07		5,000

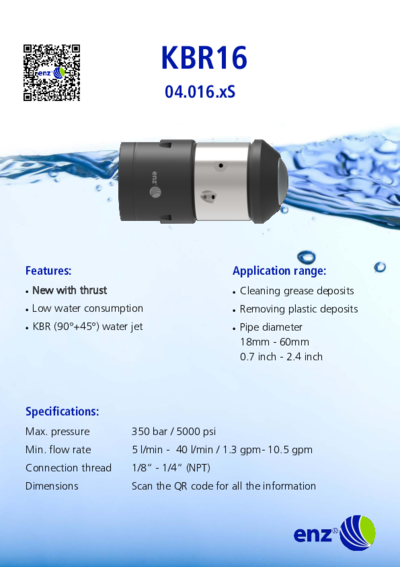

04.016AS07N	Rotojet 0.6" with thrust	1/8" NPT	1 - 2	6	4 x 0.70	3 x 0.80	-	0.6 x 1.2	0.05	-	5,075

KBR nozzles 1/4" NPT drilled

Item number	Item name
04.016B04N	Rotojet 16mm	1/4" NPT	1 - 2	1.5	4 x 0.40	-	0.6 x 1.2	0.07	5,000
04.016B07N	Rotojet 16mm	1/4" NPT	1 - 2	3	4 x 0.70	-	0.6 x 1.2	0.07	5,000
04.016B08N	Rotojet 16mm	1/4" NPT	1 - 2	3.5	4 x 0.80	-	0.6 x 1.2	0.07	5,000
04.016B09N	Rotojet 0.6"	1/4" NPT	1 - 2	4.5	4 x 0.90	-	0.6 x 1.2	0.07	5,000
04.016B10N	Rotojet 0.6"	1/4" NPT	1 - 2	5.5	4 x 1.00	-	0.6 x 1.2	0.07	5,000
04.016B11N	Rotojet 16mm	1/4" NPT	1 - 2	6.5	4 x 1.10	-	0.6 x 1.2	0.07	5,000

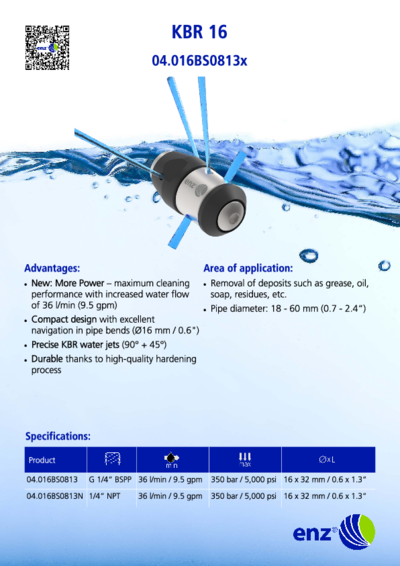

04.016BS07N	Rotojet 0.6" with thrust	1/4" NPT	1 - 2	6	4 x 0.70	3 x 0.80	0.6 x 1.2	0.05	5,000
04.016BS08N	Rotojet 0.6" with thrust	1/4" NPT	1 - 2	6	4 x 0.80	3 x 0.80	0.6 x 1.2	0.05	5,000

KBR nozzles 1/4" NPT

Item number	Item name
04.028AN	Rotojet	1/4" NPT	1 - 4	3	4 x M4	-	*	1.1 x 2.2	0.44	5,000
04.028ASN	Rotojet with thrust	1/4" NPT	1 - 4	3	4 x M4	3 x M4	*	1.1 x 2.2	0.44	5,000

KBR nozzles 3/8" NPT

Item number	Item name
04.028B	Rotojet 1.1"	3/8"	1 - 4	3	4 x M4	-	*	1.1 x 2.2	0.44	5,000
04.028BN	Rotojet	3/8" NPT	1 - 4	3	4 x M4	-	*	1.1 x 2.2	0.44	5,000

KBR nozzles 1/2"

Item number	Item name

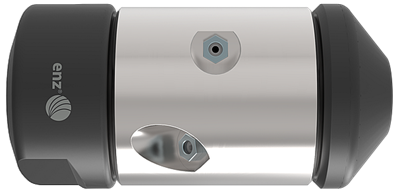

04.040A	Rotojet 1.6"	1/2"	3 - 6	5	4 x M6	-	*	1.6 x 3.2	1.2	5,000
04.040AS	Rotojet with thrust jets 1.6"	1/2"	3 - 6	11	4 x M6	3 x M6	*	1.6 x 3.2	1.2	5,000
04.050A	Rotojet 2"	1/2"	4 - 8	18	4 x M6	-	*	2.0 x 3.9	2.4	5,000
04.050AS	Rotojet with thrust jets 2"	1/2"	4 - 8	18	4 x M6	3 x M6	*	2.0 x 3.9	2.4	5,000

KBR nozzles 3/4"

Item number	Item name
04.050B	Rotojet 2"	3/4"	4 - 8	18	4 x M6	-	*	2.0 x 3.9	2.4	3,600
04.050BS	Rotojet with thrust jets 2"	3/4"	4 - 8	18	4 x M6	3 x M6	*	2.0 x 3.9	2.4	3,600

KBR nozzles 1" - 1 1/4"

Item number	Item name
04.060	Rotojet 2.4"	1"	4 - 12	21	4 x M8	3 x M8	*	2.4 x 4.4	3.53	3,600
04.100A	Rotojet 4"	1"	8 - 24	53	4 x M10	3 x M10	*	3.9 x 6.9	16.09	3,600
04.100B	Rotojet 4"	1 1/4"	8 - 24	53	4 x M10	3 x M10	*	3.9 x 6.9	16.09	3,600
