Numéro de l'article | Nom de l'article | |||||||||
501.060 |

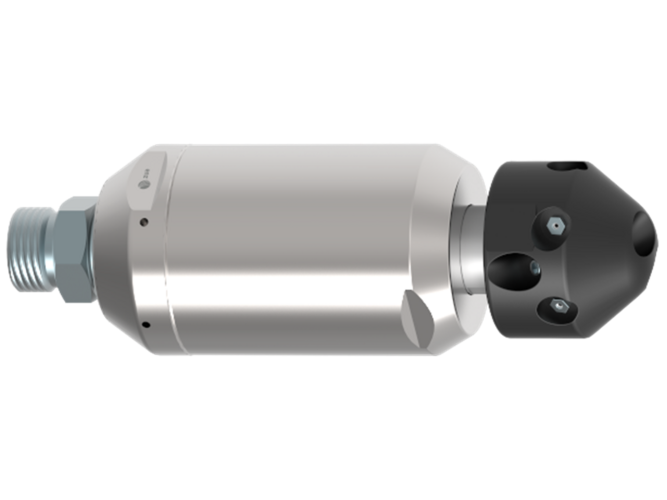

BULLDOG HD buse rotative 60 mm |
M24 x 1.5 | 65 - 150 | 40 | 6 x M6 | - | 60 x 185 | 2.41 | 1000 | |
501.060N |
BULLDOG HD buse rotative 60 mm |
1/2" NPT | 65 - 150 | 40 | 6 x M6 | - | 60 x 185 | 2.41 | 1000 | |
504.060 |
BULLDOG HD buse rotative 60 mm |
M24 x 1.5 | 65 - 150 | 46 | 6 x M6 | - | 60 x 185 | 2.41 | 1000 | |
504.060N |
BULLDOG HD buse rotative 60 mm |
1/2" NPT | 65 - 150 | 46 | 6 x M6 | - | 60 x 185 | 2.41 | 1000 | |
506.060 |
BULLDOG HD buse rotative 60 mm |
M24 x 1.5 | 65 - 150 | 50 | 6 x M6 | 2 x M6 | 60 x 185 | 2.41 | 1000 | |
506.060N |
BULLDOG HD buse rotative 60 mm |
1/2" NPT | 65 - 150 | 50 | 6 x M6 | 2 x M6 | 60 x 185 | 2.41 | 1000 |
Numéro de l'article | Nom de l'article | |||||||||
501.130 |

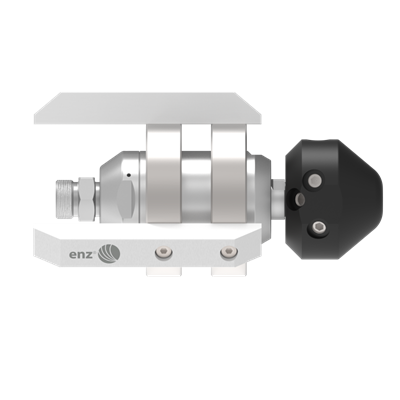

BULLDOG HD buse rotative 130 mm |
M24 x 1.5 | 140 - 300 | 40 | 6 x M10 | - | 133 x 215 | 2.70 | 1000 | |
501.130N |
BULLDOG HD buse rotative 130 mm |
1/2" NPT | 140 - 300 | 40 | 6 x M10 | - | 133 x 215 | 2.70 | 1000 | |
504.130 |
BULLDOG HD buse rotative 130 mm |
M24 x 1.5 | 140 - 300 | 46 | 6 x M10 | - | 133 x 215 | 2.70 | 1000 | |
504.130N |
BULLDOG HD buse rotative 130 mm |
1/2" NPT | 140 - 300 | 46 | 6 x M10 | - | 133 x 215 | 2.70 | 1000 | |
506.130 |
BULLDOG HD buse rotative 130 mm |
M24 x 1.5 | 140 - 300 | 50 | 6 x M10 | 2 x M10 | 133 x 215 | 2.70 | 1000 | |
506.130N |
BULLDOG HD buse rotative 130 mm |
1/2" NPT | 140 - 300 | 50 | 6 x M10 | 2 x M10 | 133 x 215 | 2.70 | 1000 |
Numéro de l'article | Nom de l'article | ||||||||
501.130-SET |

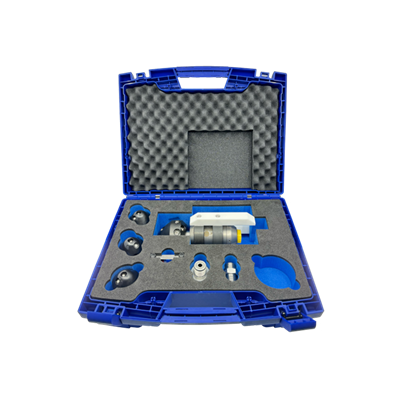

BULLDOG 130HD RGS-KBR-Unplugger Set |
M24 x 1.5 | 65 - 300 | 40 | 6 x M10 | - | 7.90 | 1000 | |
501.130N-SET |
BULLDOG 130HD RGS-KBR-Unplugger Set |
1/2" NPT | 65 - 300 | 40 | 6 x M10 | - | 7.90 | 1000 | |
504.130-SET |
BULLDOG 130HD RGS-KBR-Unplugger Set |
M24 x 1.5 | 65 - 300 | 40 | 6 x M10 | - | 7.90 | 1000 | |
504.130N-SET |
BULLDOG 130HD RGS-KBR-Unplugger Set |
1/2" NPT | 65 - 300 | 40 | 6 x M10 | - | 7.90 | 1000 | |
506.130-SET |
BULLDOG 130HD RGS-KBR-Unplugger Set |
M24 x 1.5 | 65 - 300 | 40 | 6 x M10 | 2x M10 | 7.60 | 1000 | |
506.130N-SET |
BULLDOG 130HD RGS-KBR-Unplugger Set |
1/2" NPT | 65 - 300 | 40 | 6 x M10 | 2 x M10 | 7.90 | 1000 |
Numéro de l'article | Nom de l'article | |||||||||
00500.06051 |
|
Tête universelle Bulldog 60HD |
50 x 44 | 0.38 | ||||||
00500.0608 |
|

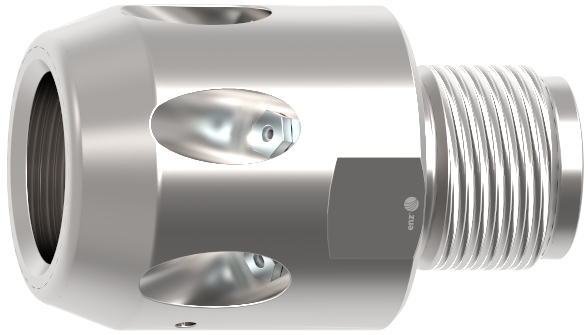

Pièce de poussée |
M24 x 1.5, M24 x 1.5 | 6 x M6 | 38 x 63 | 0.31 | 1000 | |||
00500.0608N |
|
Pièce de poussée |
M24 x 1.5, 1/2" NPT | 6 x M6 | 38 x 63 | 0.31 | 1000 | |||
500.060101 |
|
Cage pour Bulldog 60/130HD |
160 - 250 | 134 x 140 | 0.90 | |||||
00500.13052 |
|
Tête Bulldog 130HD |
6.0 x 7.5 | 1.30 |
