Item number | Item name | |||||||||

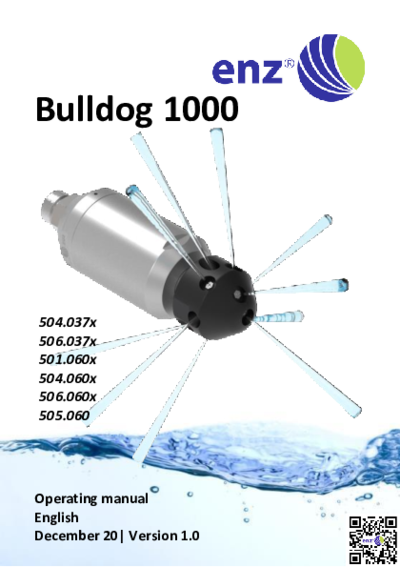

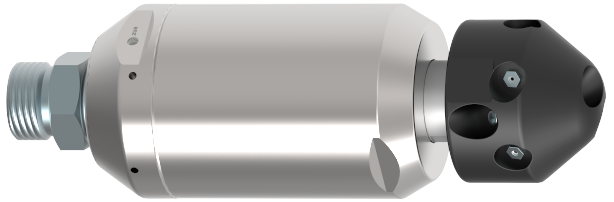

501.060 |

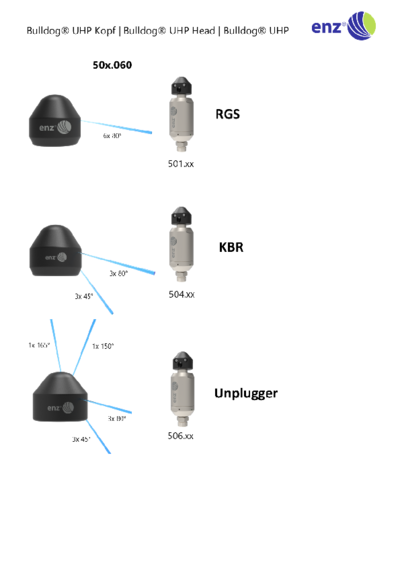

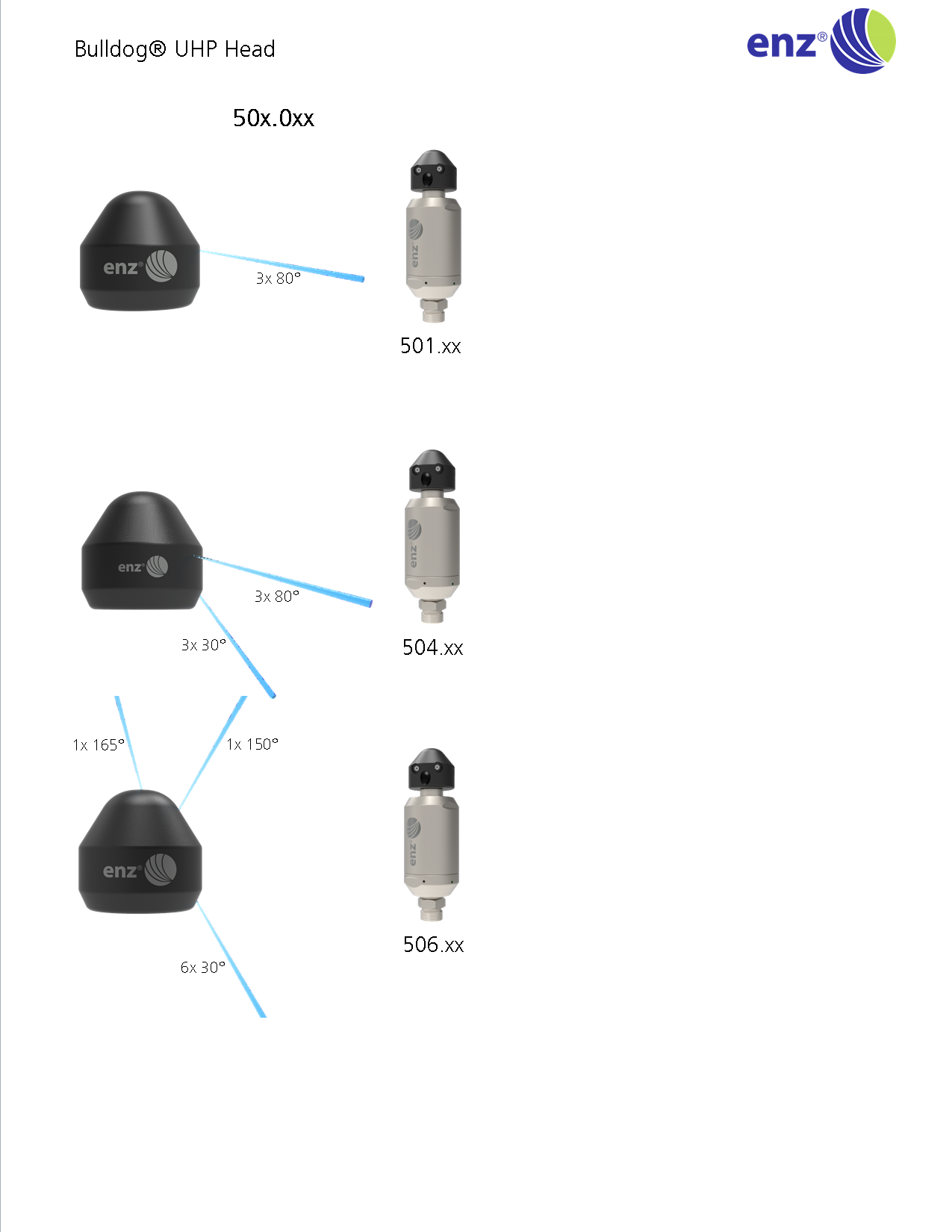

BULLDOG HD Rotating nozzle 2.4" |
M24 x 1.5 | 2.6 - 5.9 | 10.6 | 6 x M6 | - | 2.4 x 7.3 | 5.3 | 14,500 | |
501.060N |
BULLDOG HD Rotating nozzle 2.4" |
1/2" NPT | 2.6 - 5.9 | 10.6 | 6 x M6 | - | 2.4 x 7.3 | 5.3 | 14,500 | |
504.060 |
BULLDOG HD Rotating nozzle 2.4" |
M24 x 1.5 | 2.6 - 5.9 | 12.2 | 6 x M6 | - | 2.4 x 7.3 | 5.3 | 14,500 | |
504.060N |
BULLDOG HD Rotating nozzle 2.4" |
1/2" NPT | 2.6 - 5.9 | 12.2 | 6 x M6 | - | 2.4 x 7.3 | 5.3 | 14,500 | |
506.060 |
BULLDOG HD Rotating nozzle 2.4" |
M24 x 1.5 | 2.6 - 5.9 | 13.2 | 6 x M6 | 2 x M6 | 2.4 x 7.3 | 5.3 | 14,500 | |
506.060N |
BULLDOG HD Rotating nozzle 2.4" |
1/2" NPT | 2.6 - 5.9 | 13.2 | 6 x M6 | 2 x M6 | 2.4 x 7.3 | 5.3 | 14,500 |
Item number | Item name | |||||||||

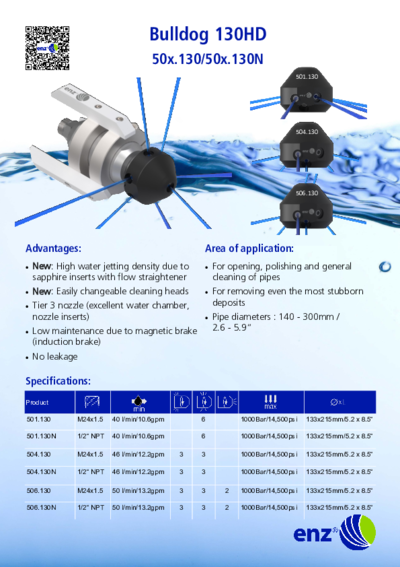

501.130 |

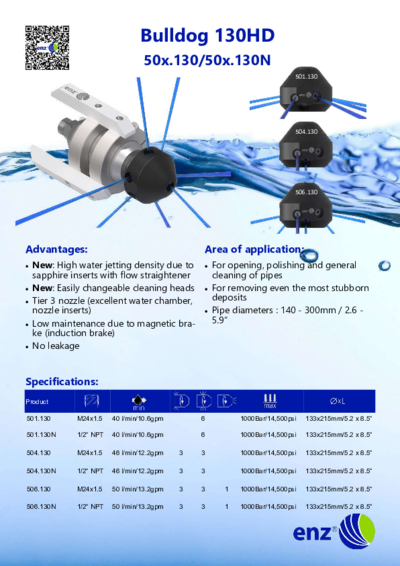

BULLDOG HD Rotating nozzle 5.1" |
M24 x 1.5 | 5.5 - 11.8 | 10.6 | 6 x M10 | - | 5.2 x 8.5 | 6 | 14,500 | |

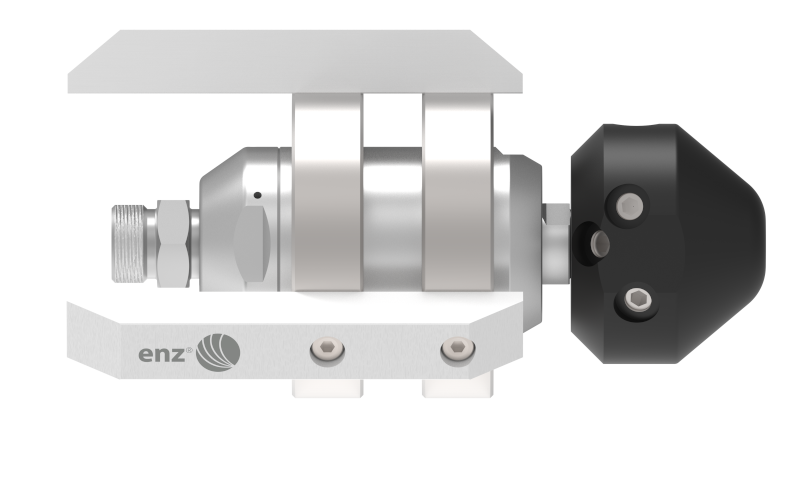

501.130N |
BULLDOG HD Rotating nozzle 5.1" |
1/2" NPT | 5.5 - 11.8 | 10.6 | 6 x M10 | - | 5.2 x 8.5 | 6.0 | 14,500 | |
504.130 |
BULLDOG HD Rotating nozzle 5.1" |
M24 x 1.5 | 5.5 - 11.8 | 12.2 | 6 x M10 | - | 5.2 x 8.5 | 6.0 | 14,500 | |
504.130N |
BULLDOG HD Rotating nozzle 5.1" |
1/2" NPT | 5.5 - 11.8 | 12.2 | 6 x M10 | - | 5.2 x 8.5 | 6 | 14,500 | |
506.130 |
BULLDOG HD Rotating nozzle 5.1" |
M24 x 1.5 | 5.5 - 11.8 | 13.2 | 6 x M10 | 2 x M10 | 5.2 x 8.5 | 6 | 14,500 | |
506.130N |
BULLDOG HD Rotating nozzle 5.1" |
1/2" NPT | 5.5 - 11.8 | 13.2 | 6 x M10 | 2 x M10 | 5.2 x 8.5 | 6 | 14,500 |
Item number | Item name | ||||||||
501.130-SET |

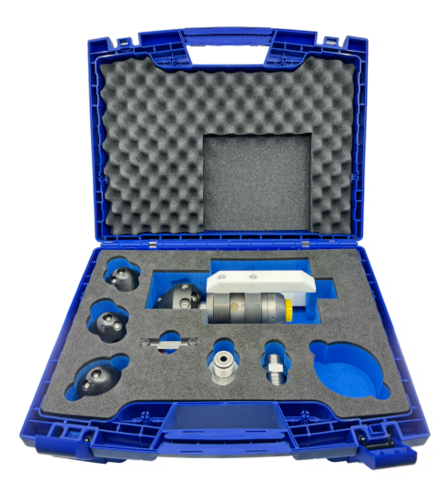

BULLDOG 1.45"/5.1"HD RGS-KBR-Unplugger Set |
M24 x 1.5 | 2.6 - 11.8 | 10.6 | 6 x M10 | - | 17.4 | 14,500 | |
501.130N-SET |
BULLDOG 1.45"/5.1"HD RGS-KBR-Unplugger Set |
1/2" NPT | 2.6 - 11.8 | 10.6 | 6 x M10 | - | 17.4 | 14,500 | |
504.130-SET |
BULLDOG 1.45"/5.1"HD RGS-KBR-Unplugger Set |
M24 x 1.5 | 2.6 - 11.8 | 10.6 | 6 x M10 | - | 17.4 | 14,500 | |
504.130N-SET |
BULLDOG 1.45"/5.1"HD RGS-KBR-Unplugger Set |
1/2" NPT | 2.6 - 11.8 | 10.6 | 6 x M10 | - | 17.4 | 14,500 | |
506.130-SET |
BULLDOG 1.45"/5.1"HD RGS-KBR-Unplugger Set |
M24 x 1.5 | 2.6 - 11.8 | 10.6 | 6 x M10 | 2x M10 | 17.4 | 14,500 | |
506.130N-SET |
BULLDOG 1.45"/5.1"HD RGS-KBR-Unplugger Set |
1/2" NPT | 2.6 - 11.8 | 10.6 | 6 x M10 | 2 x M10 | 17.4 | 14,500 |
Item number | Item name | |||||||||
500.060101 |
|

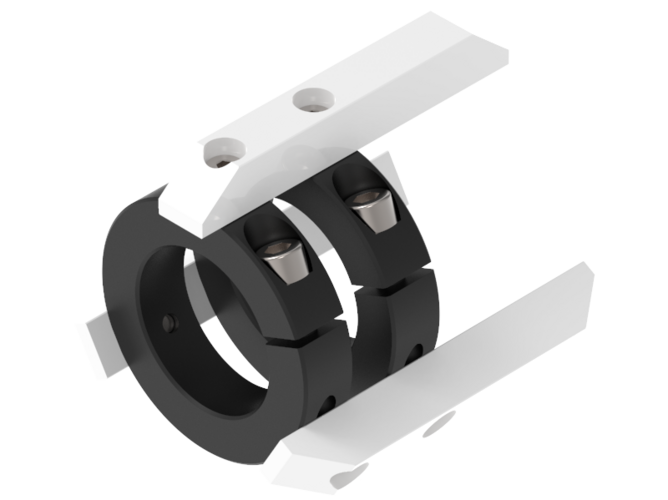

Cage for Bulldog 2.4"/5.1"HD |
6 - 12 | 5.3 x 5.5 | 1.69 | |||||
00500.06051 |
|

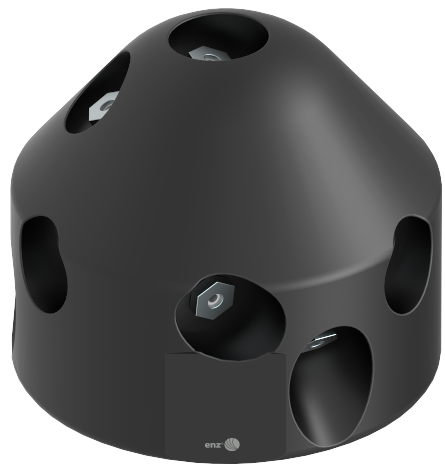

Head universal Bulldog 2.4"HD (60HD) |
2.0 x 1.7 | 0.827 | ||||||
00500.0608N |
|

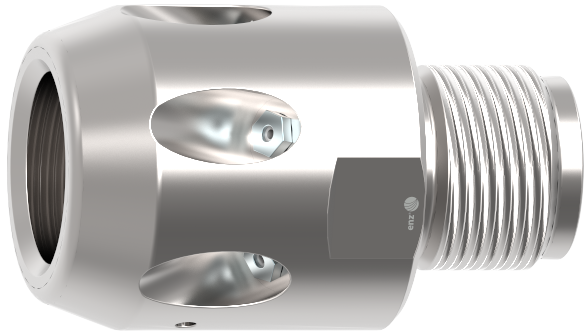

Thrust part |
M24 x 1.5, 1/2" NPT | 6 x M6 | 1.5 x 2.5 | 0.69 | 14,500 | |||
00500.13052 |
|

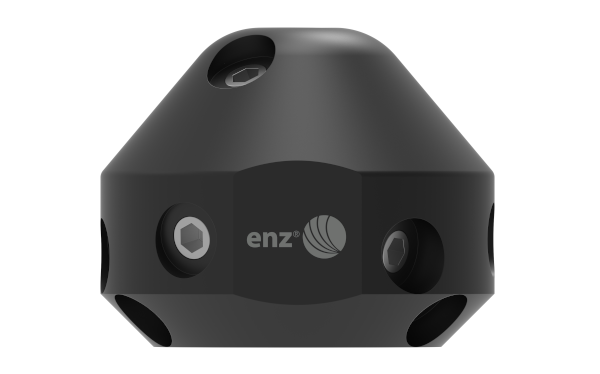

Head Bulldog 5.1"HD (130HD) |
2.7 x 3.0 | 2.9 |
