UC Düsen automatisch

UC09

UC09
  Artikelnummer Artikelname
06.009-18-M-2

UC9, 1'500 bar/ 22'000 psi

 M7 12 - 18 15 / 18 2 x 0.45 - 2 x 0.45 9.5 x 39 - ok 0.02 1000 / 1500
06.009-18-N-1

UC9, 1'000 bar/ 14'500 psi

 1/16" NPT 12 - 18 15 2 x 0.45 - 2 x 0.45 9.5 x 39 - ok 0.02 1000
06.009-18-U-2

UC9, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 12 - 18 15 / 18 2 x 0.45 - 2 x 0.45 9.5 x 39 - ok 0.02 1000 / 1500
06.009-18-UL-2

UC9, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 12 - 18 15 / 18 2 x 0.45 - 2 x 0.45 9.5 x 39 - ok 0.02 1000 / 1500

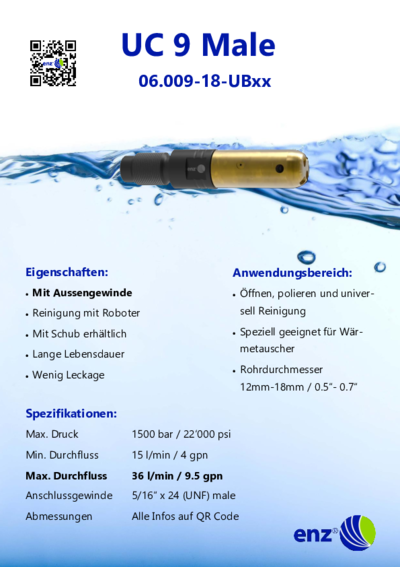

UC09 mit Aussengewinde

UC09 mit Aussengewinde
  Artikelnummer Artikelname
06.009-18-Ub-2

UC9, 1'500 bar/ 22'000 psi

 5/16" x 24 UNF (male) 12 - 18 15 / 18 2 x 0.45 - 2 x 0.45 9.5 x 46 - ok 0.02 1000 / 1500
UC13-18

UC13-18
  Artikelnummer Artikelname
06.013-18-2

UC13, 1'500 bar/ 22'000 psi

 1/8" BSPP 16 - 20 16 / 18 2 x 0.50 - 2 x 0.50 13 x 48 - ok 0.03 1000 / 1500
06.013-18-N-1

UC13, 1'000 bar/ 14'500 psi

 1/8" NPT 16 - 20 16 2 x 0.50 - 2 x 0.50 13 x 48 - ok 0.03 1000
06.013-18-UA-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 16 - 20 16 / 18 2 x 0.50 - 2 x 0.50 13 x 48 - ok 0.03 1000 / 1500
06.013-18-UAL-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 16 - 20 16 / 18 2 x 0.50 - 2 x 0.50 13 x 48 - ok 0.03 1000 / 1500
06.013-18-UB-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF 16 - 20 16 / 18 2 x 0.50 - 2 x 0.50 13 x 48 - ok 0.03 1000 / 1500
06.013-18-UBL-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 16 - 20 16 / 18 2 x 0.50 - 2 x 0.50 13 x 48 - ok 0.03 1000 / 1500
UC13-30

UC13-30
  Artikelnummer Artikelname
06.013-30-2

UC13, 1'500 bar/ 22'000 psi

 1/8" BSPP 16 - 20 24 / 30 2 x 0.70 - 2 x 0.70 13 x 48 - ok 0.03 1000 / 1500
06.013-30-N-1

UC13, 1'000 bar/ 14'500 psi

 1/8" NPT 16 - 20 24 2 x 0.70 - 2 x 0.70 13 x 48 - ok 0.03 1000
06.013-30-UA-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 16 - 20 24 / 30 2 x 0.50 - 2 x 0.50 13 x 48 - ok 0.03 1000 / 1500
06.013-30-UAL-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 16 - 20 24 / 30 2 x 0.70 - 2 x 0.70 13 x 48 - ok 0.03 1000 / 1500
06.013-30-UB-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF 16 - 20 24 / 30 2 x 0.70 - 2 x 0.70 13 x 48 - ok 0.03 1000 / 1500
06.013-30-UBL-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 16 - 20 24 / 30 2 x 0.70 - 2 x 0.70 13 x 48 - ok 0.03 1000 / 1500
UC18-30

UC18-30
  Artikelnummer Artikelname
06.018-30-A-2

UC18, 1'500 bar/ 22'000 psi

 1/8" BSPP 22 - 25 20 / 24 2 x 0.50 - 2 x 0.50 18 x 65 - ok 0.08 1000 / 1500
06.018-30-B-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 22 - 25 20 / 24 2 x 0.50 - 2 x 0.50 18 x 65 - ok 0.08 1000 / 1500
06.018-30-NB-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 22 - 25 20 2 x 0.50 - 2 x 0.50 18 x 65 - ok 0.08 1000
06.018-30-UBL-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 22 - 25 20 / 24 2 x 0.50 - 2 x 0.50 18 x 65 - ok 0.08 1000 / 1500
06.018-30-UC-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 22 - 25 20 / 24 2 x 0.50 - 2 x 0.50 18 x 65 - ok 0.08 1000 / 1500
06.018-30-UCL-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 22 - 25 20 / 24 2 x 0.50 - 2 x 0.50 18 x 65 - ok 0.08 1000 / 1500
UC18-50

UC18-50
  Artikelnummer Artikelname
06.018-50-A-2

UC18, 1'500 bar/ 22'000 psi

 1/8" BSPP 22 - 25 35 / 40 2 x 0.75 - 2 x 0.75 18 x 65 - ok 0.08 1000 / 1500
06.018-50-B-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 22 - 25 35 / 40 2 x 0.75 - 2 x 0.75 18 x 65 - ok 0.08 1000 / 1500
06.018-50-NB-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 22 - 25 35 2 x 0.75 - 2 x 0.75 18 x 65 - ok 0.08 1000
06.018-50-UBL-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 22 - 25 35 / 40 2 x 0.75 - 2 x 0.75 18 x 65 - ok 0.08 1000 / 1500
06.018-50-UC-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 22 - 25 35 / 40 2 x 0.75 - 2 x 0.75 18 x 65 - ok 0.08 1000 / 1500
06.018-50-UCL-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 22 - 25 35 / 40 2 x 0.75 - 2 x 0.75 18 x 65 - ok 0.08 1000 / 1500
UC18-70

UC18-70
  Artikelnummer Artikelname
06.018-70-B-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 22 - 25 48 / 56 2 x 0.90 - 2 x 0.90 18 x 65 - ok 0.08 1000 / 1500
06.018-70-NB-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 22 - 25 48 2 x 0.90 - 2 x 0.90 18 x 65 - ok 0.08 1000
06.018-70-UBL-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 22 - 25 48 / 56 2 x 0.90 - 2 x 0.90 18 x 65 - ok 0.08 1000 / 1500
06.018-70-UC-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 22 - 25 48 / 56 2 x 0.90 - 2 x 0.90 18 x 65 - ok 0.08 1000 / 1500
06.018-70-UCL-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 22 - 25 48 / 56 2 x 0.90 - 2 x 0.90 18 x 65 - ok 0.08 1000 / 1500
UC22

UC22
  Artikelnummer Artikelname
06.022-A-2

UC22, 1'500 bar/ 22'000 psi

 1/4" BSPP 26 - 30 25 / 30 2 x M4 - 2x M4 22 x 73 - ok 0.13 1000 / 1500
06.022-NA-1

UC22, 1'000 bar/ 14'500 psi

 1/4" NPT 26 - 30 25 2 x M4 - 2 x M4 22 x 73 - ok 0.13 1000
06.022-NB-1

UC22, 1'000 bar/ 14'500 psi

 3/8" NPT 26 - 30 25 2 x M4 - 2 x M4 22 x 73 - ok 0.13 1000
06.022-UB-2

UC22, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 26 - 30 25 / 30 2 x M4 - 2 x M4 22 x 73 - ok 0.13 1000 / 1500
06.022-UBL-2

UC22, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 26 - 30 25 / 30 2 x M4 - 2 x M4 22 x 73 - ok 0.13 1000 / 1500
UC28

UC28
  Artikelnummer Artikelname
06.028-A-2

UC28, 1'500 bar/ 22'000 psi

 1/4" BSPP 30 - 42 25 / 30 2 x M4 - 2 x M4 28 x 83 - ok 0.21 1000 / 1500
06.028-B-2

UC28, 1'500 bar/ 22'000 psi

 3/8" BSPP 30 - 42 25 / 30 2 x M4 - 2 x M4 28 x 83 - ok 0.21 1000 / 1500
06.028-NB-1

UC28, 1'000 bar/ 14'500 psi

 3/8" NPT 30 - 42 25 2 x M4 - 2 x M4 28 x 83 - ok 0.21 1000
06.028-UB-2

UC28, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 30 - 42 25 / 30 2 x M4 - 2 x M4 28 x 83 - ok 0.21 1000 / 1500
06.028-UBL-2

UC28, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 30 - 42 25 / 30 2 x M4 - 2 x M4 28 x 83 - ok 0.21 1000 / 1500
