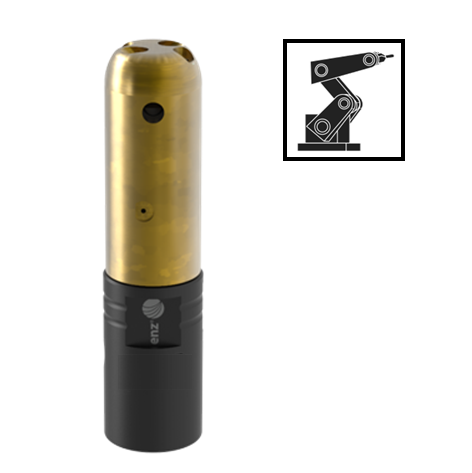

UC nozzles automated

UC09

UC09
  Item number Item name

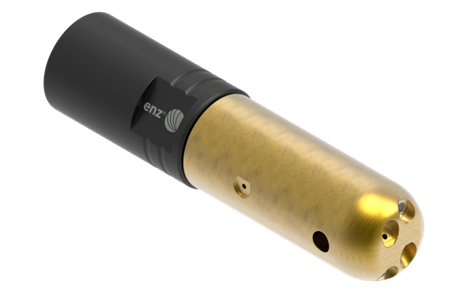

06.009-18-M-2

UC9, 1'500 bar/ 22'000 psi

 M7 0.5 - 0.7 4 / 4.8 2 x 0.45 - 2 x 0.45 0.4 x 1.5 - ok 0.04 14,500 / 22,000
06.009-18-N-1

UC9, 1'000 bar/ 14'500 psi

 1/16" NPT 0.5 - 0.7 4.0 2 x 0.45 - 2 x 0.45 0.4 x 1.5 - ok 0.04 14,500
06.009-18-U-2

UC9, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 0.5 - 0.7 4 / 4.8 2 x 0.45 - 2 x 0.45 0.4 x 1.5 - ok 0.04 14,500 / 22,000
06.009-18-UL-2

UC9, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 0.5 - 0.7 4.0 / 4.8 2 x 0.45 - 2 x 0.45 0.4 x 1.5 - ok 0.04 14,500 / 22,000

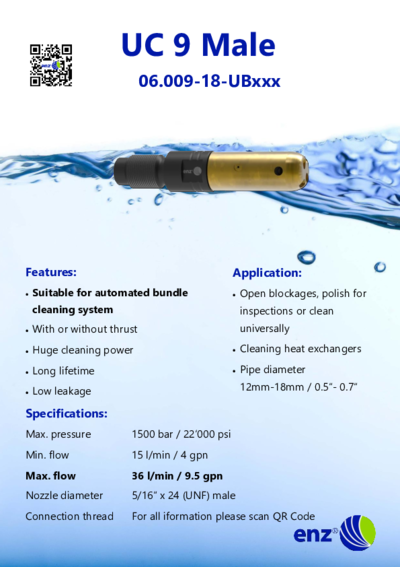

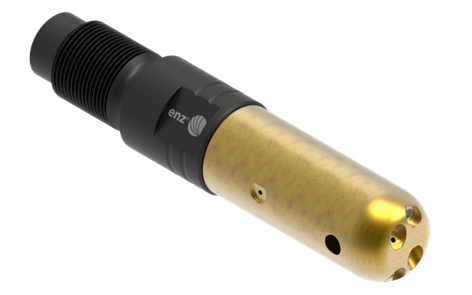

UC09 with male thread

UC09 with male thread
  Item number Item name
06.009-18-Ub-2

UC9, 1'500 bar/ 22'000 psi

 5/16" x 24 UNF (male) 0.5 - 0.7 4.0 / 4.8 2 x 0.45 - 2 x 0.45 0.4 x 1.8 - ok 0.04 14,500 / 22,000
UC13-18

UC13-18
  Item number Item name
06.013-18-2

UC13, 1'500 bar/ 22'000 psi

 1/8" BSPP 0.6 - 0.8 4.2 / 4.8 2 x 0.50 - 2 x 0.50 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-18-N-1

UC13, 1'000 bar/ 14'500 psi

 1/8" NPT 0.6 - 0.8 4.2 2 x 0.50 - 2 x 0.50 0.5 x 1.9 - ok 0.06 14,500
06.013-18-UA-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 0.6 - 0.8 4.2 / 4.8 2 x 0.50 - 2 x 0.50 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-18-UAL-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 0.6 - 0.8 4.2 / 4.8 2 x 0.50 - 2 x 0.50 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-18-UB-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF 0.6 - 0.8 4.2 / 4.8 2 x 0.50 - 2 x 0.50 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-18-UBL-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 0.6 - 0.8 4.2 / 4.8 2 x 0.50 - 2 x 0.50 0.5 x 1.9 - ok 0.06 14,500 / 22,000

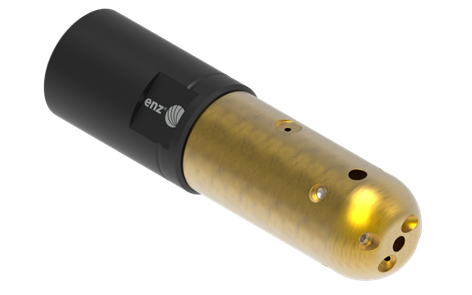

UC13-30

UC13-30
  Item number Item name
06.013-30-2

UC13, 1'500 bar/ 22'000 psi

 1/8" BSPP 0.6 - 0.8 6.3 / 7.9 2 x 0.70 - 2 x 0.70 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-30-N-1

UC13, 1'000 bar/ 14'500 psi

 1/8" NPT 0.6 - 0.8 6.3 2 x 0.70 - 2 x 0.70 0.5 x 1.9 - ok 0.06 14,500
06.013-30-UA-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 0.6 - 0.8 6.3 / 7.9 2 x 0.50 - 2 x 0.50 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-30-UAL-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 0.6 - 0.8 6.3 / 7.9 2 x 0.70 - 2 x 0.70 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-30-UB-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF 0.6 - 0.8 6.3 / 7.9 2 x 0.70 - 2 x 0.70 0.5 x 1.9 - ok 0.06 14,500 / 22,000
06.013-30-UBL-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 0.6 - 0.8 6.3 / 7.9 2 x 0.70 - 2 x 0.70 0.5 x 1.9 - ok 0.06 14,500 / 22,000
UC18-30

UC18-30
  Item number Item name
06.018-30-A-2

UC18, 1'500 bar/ 22'000 psi

 1/8" BSPP 0.9 - 1.1 5.3 / 6.3 2 x 0.50 - 2 x 0.50 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-30-B-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 0.9 - 1.1 5.3 / 6.3 2 x 0.50 - 2 x 0.50 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-30-NB-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 0.9 - 1.1 5.3 2 x 0.50 - 2 x 0.50 0.7 x 2.6 - ok 0.17 14,500
06.018-30-UBL-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 0.9 - 1.1 5.3 / 6.3 2 x 0.50 - 2 x 0.50 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-30-UC-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 0.9 - 1.1 5.3 / 6.3 2 x 0.50 - 2 x 0.50 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-30-UCL-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 0.9 - 1.1 5.3 / 6.3 2 x 0.50 - 2 x 0.50 0.7 x 2.6 - ok 0.17 14,500 / 22,000
UC18-50

UC18-50
  Item number Item name
06.018-50-A-2

UC18, 1'500 bar/ 22'000 psi

 1/8" BSPP 0.9 - 1.5 9.2 / 10.6 2 x 0.75 - 2 x 0.75 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-50-B-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 0.9 - 1.5 9.2 / 10.6 2 x 0.75 - 2 x 0.75 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-50-NB-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 0.9 - 1.5 9.2 2 x 0.75 - 2 x 0.75 0.7 x 2.6 - ok 0.17 14,500
06.018-50-UBL-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 0.9 - 1.5 9.2 / 10.6 2 x 0.75 - 2 x 0.75 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-50-UC-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 0.9 - 1.5 9.2 / 10.6 2 x 0.75 - 2 x 0.75 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-50-UCL-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 0.9 - 1.5 9.2 / 10.6 2 x 0.75 - 2 x 0.75 0.7 x 2.6 - ok 0.17 14,500 / 22,000

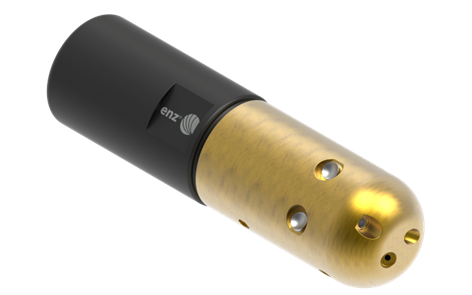

UC18-70

UC18-70
  Item number Item name
06.018-70-B-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 0.9 - 1.0 12.7 / 14.8 2 x 0.90 - 2 x 0.90 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-70-NB-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 0.9 - 1.0 12.7 2 x 0.90 - 2 x 0.90 0.7 x 2.6 - ok 0.17 14,500
06.018-70-UBL-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 0.9 - 1.0 12.7 / 14.8 2 x 0.90 - 2 x 0.90 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-70-UC-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 0.9 - 1.0 12.7 / 14.8 2 x 0.90 - 2 x 0.90 0.7 x 2.6 - ok 0.17 14,500 / 22,000
06.018-70-UCL-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 0.9 - 1.0 12.7 / 14.8 2 x 0.90 - 2 x 0.90 0.7 x 2.6 - ok 0.17 14,500 / 22,000
UC22

UC22
  Item number Item name
06.022-A-2

UC22, 1'500 bar/ 22'000 psi

 1/4" BSPP 1.0 - 1.1 6.6 / 7.9 2 x M4 - 2x M4 0.9 x 2.8 - ok 0.29 14,500 / 22,000
06.022-NA-1

UC22, 1'000 bar/ 14'500 psi

 1/4" NPT 1.0 - 1.1 6.6 2 x M4 - 2 x M4 0.9 x 2.8 - ok 0.29 14,500
06.022-NB-1

UC22, 1'000 bar/ 14'500 psi

 3/8" NPT 1.0 - 1.1 6.6 2 x M4 - 2 x M4 0.9 x 2.8 - ok 0.29 14,500
06.022-UB-2

UC22, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 1.0 - 1.1 6.6 / 7.9 2 x M4 - 2 x M4 0.9 x 2.8 - ok 0.29 14,500 / 22,000
06.022-UBL-2

UC22, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 1.0 - 1.1 6.6 / 7.9 2 x M4 - 2 x M4 0.9 x 2.8 - ok 0.29 14,500 / 22,000

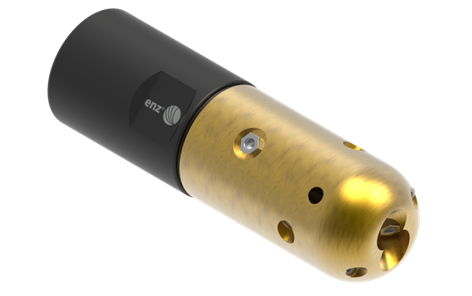

UC28

UC28
  Item number Item name
06.028-A-2

UC28, 1'500 bar/ 22'000 psi

 1/4" BSPP 1.4 - 1.6 6.6 / 7.9 2 x M4 - 2 x M4 1.1 x 3.3 - ok 0.46 14,500 / 22,000
06.028-B-2

UC28, 1'500 bar/ 22'000 psi

 3/8" BSPP 1.4 - 1.6 6.6 / 7.9 2 x M4 - 2 x M4 1.1 x 3.3 - ok 0.46 14,500 / 22,000
06.028-NB-1

UC28, 1'000 bar/ 14'500 psi

 3/8" NPT 1.4 - 1.6 6.6 2 x M4 - 2 x M4 1.1 x 3.3 - ok 0.46 14,500
06.028-UB-2

UC28, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 1.4 - 1.6 6.6 / 7.9 2 x M4 - 2 x M4 1.1 x 3.3 - ok 0.46 14,500 / 22,000
06.028-UBL-2

UC28, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 1.4 - 1.6 6.6 / 7.9 2 x M4 - 2 x M4 1.1 x 3.3 - ok 0.46 14,500 / 22,000
