Silverline Spitzdüsen 1/8" - 1/2"
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|
|
| 60.012SL15 |
Spitzdüse 15 l/min 100 bar |
1/8" | 20 - 40 | 15 | 3 x 0.95 | 4x 0.50 | 25° | 15° | 16 x 25 | 0.02 | 350 | |
| 60.025SL15 |
Spitzdüse 15 l/min 100 bar |
1/4" | 22 - 50 | 15 | 3 x 0.90 | 4 x 0.60 | 25° | 15° | 20 x 33 | 0.03 | 350 | |
| 60.025SL30 |
Spitzdüse 30 l/min 100 bar |
1/4" | 22 - 50 | 30 | 3 x 1.35 | 4 x .070 | 25° | 15° | 20 x 33 | 0.03 | 350 | |
| 60.050SL100 |
Spitzdüse 100 l/min 100 bar |
1/2" | 40 - 150 | 100 | 3 x 2.40 | 4 x 1.10 | 25° | 15° | 32 x 55 | 0.14 | 350 | |

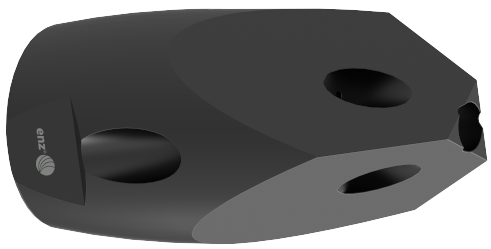

| 60.050SL40 |
Spitzdüse 40 l/min 100 bar |
1/2" | 40 - 150 | 40 | 3 x 1.50 | 4 x 0.80 | 25° | 15° | 32 x 55 | 0.14 | 350 | |
| 60.050SL70 |
Spitzdüse 70 l/min 100 bar |
1/2" | 40 - 150 | 70 | 3 x1.80 | 4 x 0.90 | 25° | 15° | 32 x 55 | 0.14 | 350 |
Silverline Spitzdüsen 1/8" - 1/2"
Spitzdüsen 3/8" - 1 1/4"
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|
|
|
| 60.038 |
Spitzdüse |
3/8" | 28 - 100 | 30 | 3 x M4 | 4 x M4 | 20° | 15° | 26 x 44 | 0.08 | ok | 350 | |
| 60.050 |
Spitzdüse |
1/2" | 40 - 150 | 50 | 3 x M6 | 4 x M4 | 25° | 15° | 32 x 55 | 0.09 | ok | 350 | |
| 60.075 |
Spitzdüse |
3/4" | 60 - 250 | 100 | 3 x M6 | 4 x M4 | 25° | 15° | 38 x 80 | 0.32 | ok | 350 | |

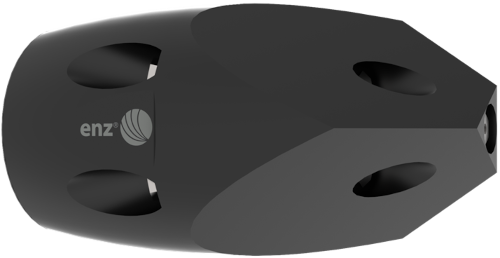

| 60.100 |
Spitzdüse |
1" | 100 - 300 | 150 | 6 x M6 | 4 x M6 | 25° | 15° | 48 x 90 | 0.60 | ok | 250 | |
| 60.100L |
Spitzdüse Ø 68 lange Ausführung |
1" | 150 - 400 | 200 | 6 x M10 | 4 x M8 | 25° | 15° | 68 x 187 | 2.70 | ok | 250 | |
| 60.100L80 |
Spitzdüse Ø 80 lange Ausführung |
1" | 150 - 500 | 200 | 6 x M10 | 4 x M8 | 10° | 15° | 79 x 218 | 4.68 | ok | 250 | |
| 60.125 |
Spitzdüse |
1 1/4" | 150 - 400 | 200 | 6 x M6 | 4 x M6 | 20° | 15° | 58 x 100 | 0.98 | ok | 250 | |
| 60.125L |
Spitzdüse lange Ausführung |
1 1/4" | 200 - 800 | 300 | 6 x M10 | 4 x M8 | 10° | 15° | 98 x 258 | 8.40 | ok | 250 |
Spitzdüsen 3/8" - 1 1/4"
Spitzdüsen mit Zentrumsspitz 1/2" - 1 1/4"
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|
|
|
| 61.050 |
Spitzdüse |
1/2" | 40 - 150 | 50 | 3 x M6 | 3 x M4 | 25° | 15° | 38 x 82 | 0.15 | ok | 350 | |
| 61.075 |
Spitzdüse |
3/4" | 60 - 250 | 100 | 3 x M6 | 3 x M4 | 25° | 15° | 38 x 104.5 | 0.33 | ok | 350 | |

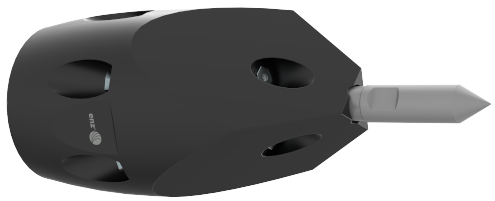

| 61.100 |
Spitzdüse |
1" | 100 - 300 | 150 | 6 x M6 | 3 x M6 | 25° | 15° | 48 x 123.5 | 0.56 | ok | 250 | |
| 61.100L |
Spitzdüse Ø 68 lange Ausführung |
1" | 150 - 400 | 200 | 6 x M10 | 3 x M8 | 25° | 15° | 68 x 220 | 2.72 | ok | 250 | |
| 61.100L80 |
Spitzdüse Ø 80 lange Ausführung |
1" | 150 - 500 | 200 | 6 x M10 | 3 x M8 | 10° | 15° | 79 x 260 | 4.71 | ok | 250 | |
| 61.125 |
Spitzdüse |
1 1/4" | 150 - 400 | 200 | 6 x M6 | 3 x M6 | 20° | 15° | 58 x 133 | 0.94 | ok | 250 | |
| 61.125L |
Spitzdüse lange Ausführung |
1 1/4" | 200 - 800 | 300 | 6 x M10 | 3 x M8 | 10° | 15° | 98 x 300 | 8.43 | ok | 250 |
Spitzdüsen mit Zentrumsspitz 1/2" - 1 1/4"
Zubehör und Verschleissteile Spitzdüsen
| Artikelnummer | Artikelname |
|
|
|
|||

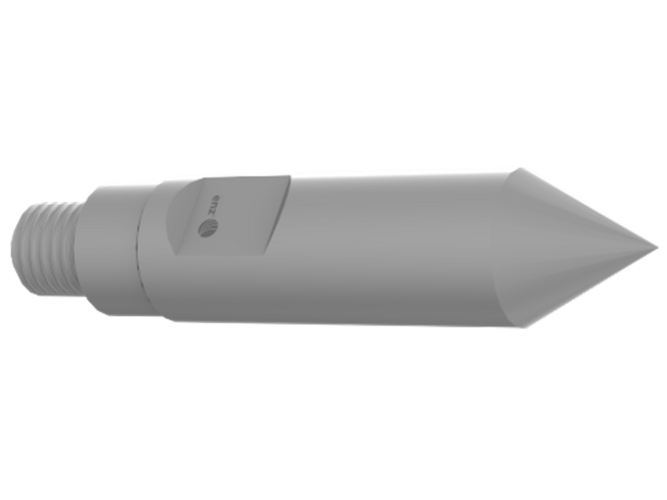

| 0061.0504 |
Zentrumsspitz zu Spitzdüse 60.050, 60.075
|
Zentrumsspitz zu Spitzdüse 60.050, 60.075 |
M4 | 6 x 32 | 0.10 | ||
| 0061.1004 |
Zentrumsspitz zu Spitzdüse 60.100
|
Zentrumsspitz zu Spitzdüse 60.100 |
M6 | 9 x 42 | 0.10 | ||
| 0061.1254 |
Zentrumsspitz zu Spitzdüse 60.100L80, 60.125L
|
Zentrumsspitz zu Spitzdüse 60.100L80, 60.125L |
M8 | 11 x 53 | 0.05 |
Zubehör und Verschleissteile Spitzdüsen
