KBRV Düsen 1/8" - 1/4"
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|
|
| 04.016AV07 |

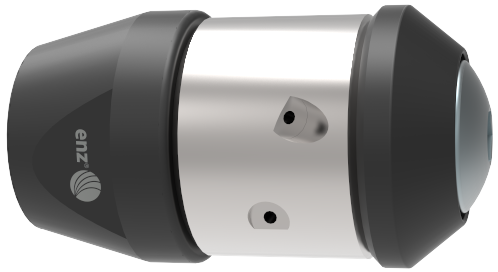

Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 6 | 90°: 2 x 0.70, 45°: 2 x 0.70 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016AV08 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 10 | 90°: 2 x 0.80, 45°: 2 x 0.80 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016AV09 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 15 | 90°: 2 x 0.90, 45°: 2 x 0.90 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016AV10 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 18 | 90°: 2 x 1.00, 45°: 2 x 1.00 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016AV11 |
Rotierdüse Ø 16mm |
1/8" | 18 - 60 | 25 | 90°: 2 x 1.10, 45°: 2 x 1.10 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016AVS |
RotierdüseØ 16mm mit Schub |
1/8" | 18 - 60 | 20 | 90°: 2 x 0.80, 45°: 2 x 0.80 | 3 x 0.80 | * | 16 x 31 | 0.03 | 350 | ||
| 04.016BV07 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 6 | 90°: 2 x 0.70, 45°: 2 x 0.70 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016BV08 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 10 | 90°: 2 x 0.80, 45°: 2 x 0.80 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016BV09 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 15 | 90°: 2 x 0.90, 45°: 2 x 0.90 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016BV10 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 18 | 90°: 2 x 1.00, 45°: 2 x 1.00 | - | * | 16 x 03 | 0.03 | 350 | ||
| 04.016BV11 |
Rotierdüse Ø 16mm |
1/4" | 18 - 60 | 25 | 90°: 2 x 1.10, 45°: 2 x 1.10 | - | * | 16 x 30 | 0.03 | 350 | ||
| 04.016BVS |
Rotierdüse Ø 16mm mit Schub |
1/4" | 18 - 60 | 20 | 90°: 2 x 0.80, 45°: 2 x 0.80 | 3 x 0.80 | * | 16 x 31 | 0.03 | 350 | ||
| 04.028AV |
Rotierdüse Ø 28mm |
1/4" | 30 - 100 | 20 | 90°: 2 x M4, 45°: 2 x M4 | 3 x M4 | * | 28 x 56 | 0.20 | 350 |
KBRV Düsen 1/8" - 1/4"
KBRV Düsen 1/4" - 1 1/4"
| Artikelnummer | Artikelname |
|
|
|
|
|
|
|
|
|
|
|
| 04.040AV |
Rotierdüse Ø 40mm |
1/2" | 70 - 150 | 30 | 90°: 2 x M6, 45°: 2 x M6 | 3 x M6 | * | 40 x 80 | 0.54 | 350 | ||
| 04.050AV |
Rotierdüse Ø 50mm |
1/2" | 100 - 200 | 70 | 90°: 2 x M6, 45°: 2 x M6 | 3 x M6 | * | 50 x 99 | 1.10 | 350 | * | |
| 04.050BV |
Rotierdüse Ø 50mm |
3/4" | 100 - 200 | 70 | 90°: 2 x M6, 45°: 2 x M6 | 3 x M6 | * | 50 x 99 | 1.10 | 250 | * | |
| 04.060V |
Rotierdüse Ø 60mm |
1" | 100 - 300 | 100 | 90°: 2 x M8, 45°: 2 x M8 | 3 x M8 | * | 60 x 111 | 1.60 | 250 | ||
| 04.100AV |
Rotierdüse Ø 100mm |
1" | 200 - 600 | 200 | 90°: 2 x M10, 45°: 2 x M10 | 3 x M10 | * | 100 x 175 | 7.30 | 250 | ||
| 04.100BV |
Rotierdüse Ø 100mm |
1 1/4" | 200 - 600 | 200 | 90°: 2 x M10, 45°: 2 x M10 | 3 x M10 | * | 100 x 175 | 7.30 | 250 |
KBRV Düsen 1/4" - 1 1/4"
