UC Düsen automatisch und manuell

UC09
  Artikelnummer Artikelname
06.009-18-MS-2

UC9, 1'500 bar/ 22'000 psi

 M7 12 - 18 30 / 36 2 x 0.45 3 x 0.60 2 x 0.45 9.5 x 39 ok ok 0.02 1000 / 1500
06.009-18-NS-1

UC9, 1'000 bar/ 14'500 psi

 1/16" NPT 12 - 18 30 2 x 0.45 3 x 0.60 2 x 0.45 9.5 x 39 ok ok 0.02 1000
06.009-18-ULS-2

UC9, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 12 - 18 30 / 36 2 x 0.45 3 x 0.60 2 x 0.45 9.5 x 39 ok ok 0.02 1000 / 1500
06.009-18-US-2

UC9, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 12 - 18 30 / 36 2 x 0.45 3 x 0.60 2 x 0.45 9.5 x 39 ok ok 0.02 1000 / 1500

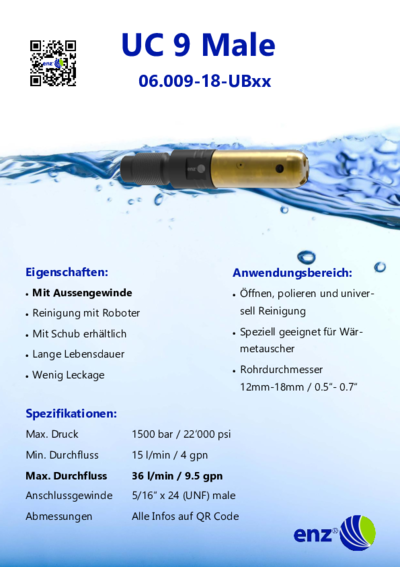

UC09 mit Aussengewinde

UC09 mit Aussengewinde
  Artikelnummer Artikelname
06.009-18-UbS-2

UC9, 1'500 bar/ 22'000 psi

 5/16" x 24 UNF (male) 12 - 18 30 / 36 2 x 0.45 3 x 0.60 2 x 0.45 9.5 x 46 ok ok 0.02 1000 / 1500
UC13-18

UC13-18
  Artikelnummer Artikelname
06.013-18-NS-1

UC13, 1'000 bar/ 14'500 psi

 1/8" NPT 16 - 20 28 2 x 0.50 3 x 0.60 2 x 0.50 13 x 48 ok ok 0.03 1000
06.013-18-S-2

UC13, 1'500 bar/ 22'000 psi

 1/8" BSPP 16 - 20 28 / 36 2 x 0.50 3 x 0.60 2 x 0.50 13 x 48 ok ok 0.03 1000 / 1500
06.013-18-UALS-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 16 - 20 28 / 36 2 x 0.50 3 x 0.60 2 x 0.50 13 x 48 ok ok 0.03 1000 / 1500
06.013-18-UAS-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 16 - 20 28 / 36 2 x 0.50 3 x 0.60 2 x 0.50 13 x 48 ok ok 0.03 1000 / 1500
06.013-18-UBLS-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 16 - 20 28 / 36 2 x 0.50 3 x 0.60 2 x 0.50 13 x 48 ok ok 0.03 1000 / 1500
06.013-18-UBS-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF 16 - 20 28 / 36 2 x 0.50 3 x 0.60 2 x 0.50 13 x 48 ok ok 0.03 1000 / 1500
UC13-30

UC13-30
  Artikelnummer Artikelname
06.013-30-NS-1

UC13, 1'000 bar/ 14'500 psi

 1/8" NPT 16 - 20 42 2 x 0.70 3 x 0.60 2 x 0.70 13 x 48 ok ok 0.03 1000
06.013-30-UALS-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF LH 16 - 20 42 / 52 2 x 0.70 3 x 0.60 2 x 0.70 13 x 48 ok ok 0.03 1000 / 1500
06.013-30-UAS-2

UC13, 1'500 bar/ 22'000 psi

 1/4" x 28UNF 16 - 20 42 / 52 2 x 0.70 3 x 0.60 2 x 0.70 13 x 48 ok ok 0.03 1000 / 1500
06.013-30-UBLS-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 16 - 20 42 / 52 2 x 0.70 3 x 0.60 2 x 0.70 13 x 48 ok ok 0.03 1000 / 1500
06.013-30-UBS-2

UC13, 1'500 bar/ 22'000 psi

 3/8" x 24UNF 16 - 20 42 / 52 2 x 0.70 3 x 0.60 2 x 0.70 13 x 48 ok ok 0.03 1000 / 1500
UC18-30

UC18-30
  Artikelnummer Artikelname
06.018-30-AS-2

UC18, 1'500 bar/ 22'000 psi

 1/8" BSPP 22 - 25 33 / 44 2 x 0.50 3 x M3 2 x 0.50 18 x 65 ok ok 0.08 1000 / 1500
06.018-30-BS-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 22 - 25 33 / 44 2 x 0.50 3 x M3 2 x 0.50 18 x 65 ok ok 0.08 1000 / 1500
06.018-30-NBS-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 22 - 25 33 2 x 0.50 3 x M3 2 x 0.50 18 x 65 ok ok 0.08 1000
06.018-30-UBLS-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 22 - 25 33 / 44 2 x 0.50 3 x M3 2 x 0.50 18 x 65 ok ok 0.08 1000 / 1500
06.018-30-UCLS-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 22 - 25 33 / 44 2 x 0.50 3 x M3 2 x 0.50 18 x 65 ok ok 0.08 1000 / 1500
06.018-30-UCS-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 22 - 25 33 / 44 2 x 0.50 3 x M3 2 x 0.50 18 x 65 ok ok 0.08 1000 / 1500
UC18-50

UC18-50
  Artikelnummer Artikelname
06.018-50-AS-2

UC18, 1'500 bar/ 22'000 psi

 1/8" BSPP 22 - 25 52 / 67 2 x 0.75 3 x M3 2 x 0.75 18 x 65 ok ok 0.08 1000 / 1500
06.018-50-BS-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 22 - 25 52 / 67 2 x 0.75 3 x M3 2 x 0.75 18 x 65 ok ok 0.08 1000 / 1500
06.018-50-NBS-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 22 - 25 52 2 x 0.75 3 x M3 2 x 0.75 18 x 65 ok ok 0.08 1000
06.018-50-UBLS-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 22 - 25 52 / 67 2 x 0.75 3 x M3 2 x 0.75 18 x 65 ok ok 0.08 1000 / 1500
06.018-50-UCLS-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 22 - 25 52 / 67 2 x 0.75 3 x M3 2 x 0.75 18 x 65 ok ok 0.08 1000 / 1500
06.018-50-UCS-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 22 - 25 52 / 67 2 x 0.75 3 x M3 2 x 0.75 18 x 65 ok ok 0.08 1000 / 1500
UC18-70

UC18-70
  Artikelnummer Artikelname
06.018-70-BS-2

UC18, 1'500 bar/ 22'000 psi

 1/4" BSPP 22 - 25 78 / 96 2 x 0.90 3 x M3 2 x 0.90 18 x 65 ok ok 0.08 1000 / 1500
06.018-70-NBS-1

UC18, 1'000 bar/ 14'500 psi

 1/4" NPT 22 - 25 78 2 x 0.90 3 x M3 2 x 0.90 18 x 65 ok ok 0.08 1000
06.018-70-UBLS-2

UC18, 1'500 bar/ 22'000 psi

 3/8" x 24UNF LH 22 - 25 78 / 96 2 x 0.90 3 x M3 2 x 0.90 18 x 65 ok ok 0.08 1000 / 1500
06.018-70-UCLS-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 22 - 25 78 / 96 2 x 0.90 3 x M3 2 x 0.90 18 x 65 ok ok 0.08 1000 / 1500
06.018-70-UCS-2

UC18, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 22 - 25 78 / 96 2 x 0.90 3 x M3 2 x 0.90 18 x 65 ok ok 0.08 1000 / 1500
UC22

UC22
  Artikelnummer Artikelname
06.022-AS-2

UC22, 1'500 bar/ 22'000 psi

 1/4" BSPP 26 - 30 40 / 50 2 x M4 3 x M4 2 x M4 22 x 73 ok ok 0.13 1000 / 1500
06.022-NAS-1

UC22, 1'000 bar/ 14'500 psi

 1/4" NPT 26 - 30 40 2 x M4 3 x M4 2 x M4 22 x 73 ok ok 0.13 1000
06.022-NBS-1

UC22, 1'000 bar/ 14'500 psi

 3/8" NPT 26 - 30 40 2 x M4 3 x M4 2 x M4 22 x 73 ok ok 0.13 1000
06.022-UBLS-2

UC22, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 26 - 30 40 / 50 2 x M4 3 x M4 2 x M4 22 x 73 ok ok 0.13 1000 / 1500
06.022-UBS-2

UC22, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 26 - 30 40 / 50 2 x M4 3 x M4 2 x M4 22 x 73 ok ok 0.13 1000 / 1500
UC28

UC28
  Artikelnummer Artikelname
06.028-AS-2

UC28, 1'500 bar/ 22'000 psi

 1/4" BSPP 30 - 42 40 / 50 2 x M4 3 x M4 2 x M4 28 x 83 ok ok 0.21 1000 / 1500
06.028-BS-2

UC28, 1'500 bar/ 22'000 psi

 3/8" BSPP 30 - 42 40 / 50 2 x M4 3 x M4 2 x M4 28 x 83 ok ok 0.21 1000 / 1500
06.028-NBS-1

UC28, 1'000 bar/ 14'500 psi

 3/8" NPT 30 - 42 40 2 x M4 3 x M4 2 x M4 28 x 83 ok ok 0.21 1000
06.028-UBLS-2

UC28, 1'500 bar/ 22'000 psi

 9/16" x 18UNF LH 30 - 42 40 / 50 2 x M4 3 x M4 2 x M4 28 x 83 ok ok 0.21 1000 / 1500
06.028-UBS-2

UC28, 1'500 bar/ 22'000 psi

 9/16" x 18UNF 30 - 42 40 / 50 2 x M4 3 x M4 2 x M4 28 x 83 ok ok 0.21 1000 / 1500
