UR nozzles automated and manual

enz® UR nozzles are used to clean the inside of smaller pipes and tubes, e.g. in heat exchangers. The enz® water-brake makes them spin at a constant speed. You can clean the tubes up to 1500 bar (22,000 psi). The 90° and 45° jets remove the hardest of deposits while pulling the nozzle into the tube and flushing the debris out.

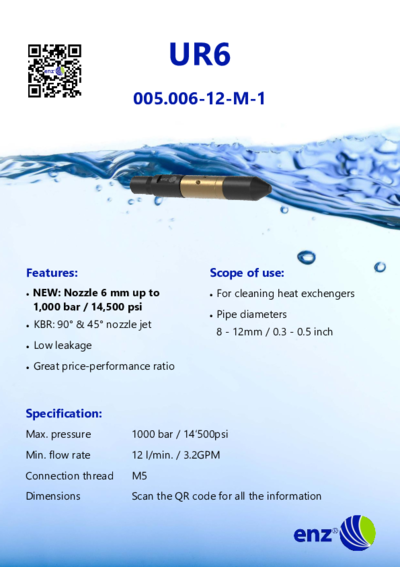

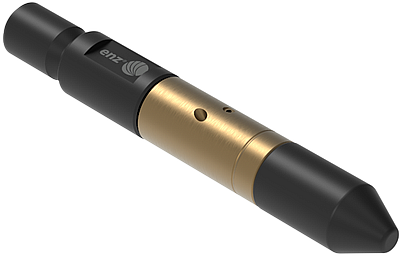

UR6

	Item number	Item name
	05.006-12-m-1	HP-Rotojet 0.2"	M5	0.3 - 0.5	3.2	2 x 0.45, 2 x 0.45	0.2 x 1.7	ok	ok	0.02	14,500

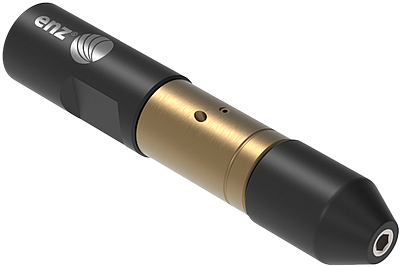

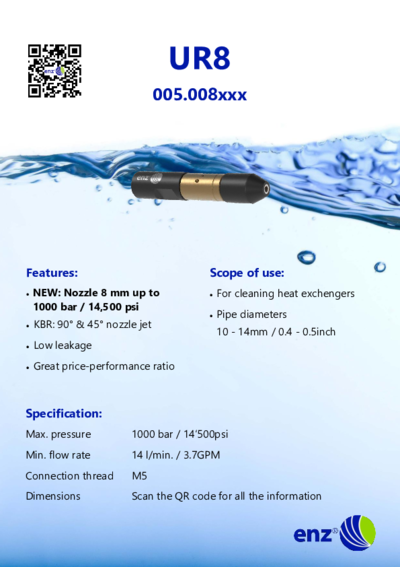

UR8

	Item number	Item name
	05.008-14-M-1	HP-Rotojet 0.3"	M5	0.4 - 0.5	3.7	2 x 0.45, 2 x 0.45	*	0.3 x 1.7	ok	ok	0.02	14,500

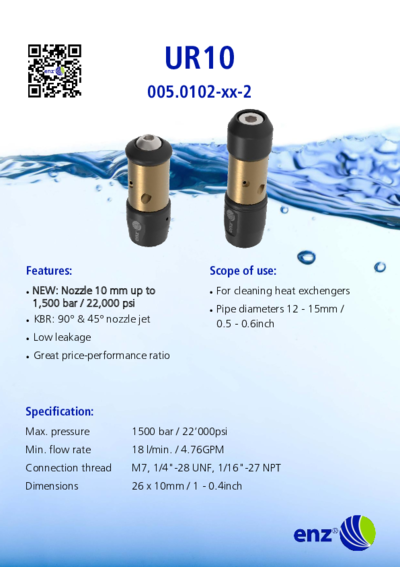

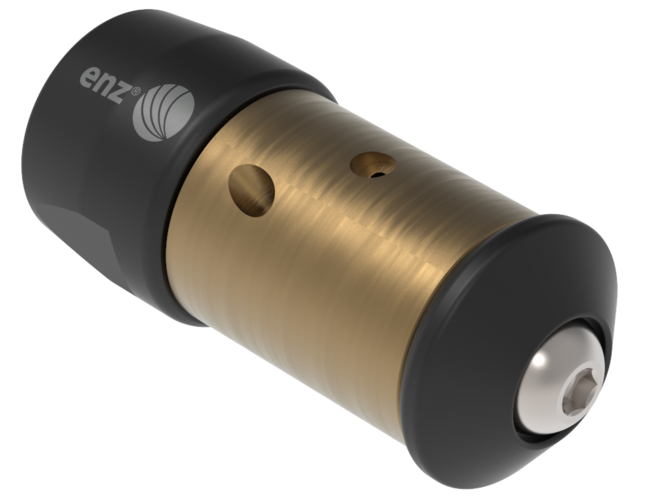

UR10

Item number	Item name
05.010-20-M-2	UR10 1'500 bar / 22'000 psi	M7	0.5 - 0.6	5.3	2 x 0.45, 2 x 0.45	0.4 x 1.0	ok	ok	0.02	22,000
05.010-20-N-1	UR10 1'000 bar / 14'500 psi	1/16" NPT	0.5 - 0.6	4.7	2 x 0.45, 2 x 0.45	0.4 x 1.0	ok	ok	0.02	14,500
05.010-20-U-2	UR10 1'500 bar / 22'000 psi	1/4" UNF	0.5 - 0.6	5.3	2 x 0.45, 2 x 0.45	0.4 x 1.0	ok	ok	0.02	22,000
05.010-30-M-2	UR10 1'500 bar / 22'000 psi	M7	0.5 - 0.6	7.9	2 x 0.55, 2 x 0.50	0.4 x 1.0	ok	ok	0.02	22,000
05.010-30-N-1	UR10 1'000 bar / 14'500 psi	1/16" NPT	0.5 - 0.6	6.6	2 x 0.55, 2 x 0.50	0.4 x 1.0	ok	ok	0.02	14,500
05.010-30-U-2	UR10 1'500 bar / 22'000 psi	1/4" UNF	0.5 - 0.6	7.9	2 x 0.55, 2 x 0.50	0.4 x 1.0	ok	ok	0.02	22,000
05.010-40-M-2	UR10 1'500 bar / 22'000 psi	M7	0.5 - 0.6	10.6	2 x 0.65, 2 x 0.60	0.4 x 1.0	ok	ok	0.02	22,000
05.010-40-N-1	UR10 1'000 bar / 14'500 psi	1/16" NPT	0.5 - 0.6	8.7	2 x 0.65, 2 x 0.60	0.4 x 1.0	ok	ok	0.02	14,500
05.010-40-U-2	UR10 1'500 bar / 22'000 psi	1/4" x UNF	0.5 - 0.6	10.5	2 x 0.65, 2 x 0.60	0.4 x 1.0	ok	ok	0.02	22,000

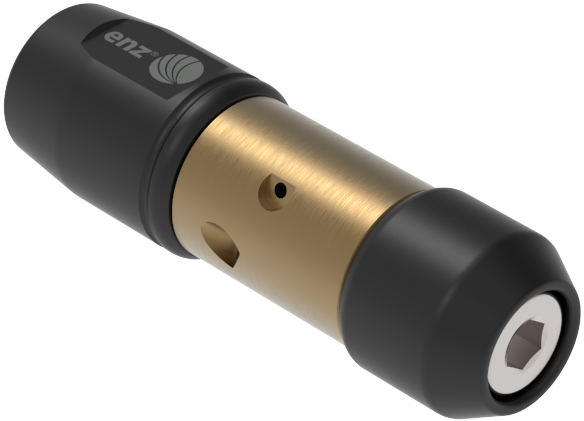

UR10 Long

Item number	Item name
05.010-20-LM-2	UR10 1'500 bar / 22'000 psi	M7	0.5 - 0.6	5.3	2 x 0.45, 2 x 0.45	0.4 x 1.3	ok	ok	0.03	22,000
05.010-20-LN-1	UR10 1'000 bar / 14'500 psi	1/16" NPT	0.5 - 0.6	4.8	2 x 0.45, 2 x 0.45	0.4 x 1.3	ok	ok	0.03	14,500
05.010-20-LU-2	UR10 1'500 bar / 22'000 psi	1/4" UNF	0.5 - 0.6	5.3	2 x 0.45, 2 x 0.45	0.4 x 1.3	ok	ok	0.03	22,000
05.010-30-LM-2	UR10 1'500 bar / 22'000 psi	M7	0.5 - 0.6	7.9	2 x 0.55, 2 x 0.50	0.4 x 1.3	ok	ok	0.03	22,000
05.010-30-LN-1	UR10 1'000 bar / 14'500 psi	1/16" NPT	0.5 - 0.6	6.6	2 x 0.55, 2 x 0.50	0.4 x 1.3	ok	ok	0.03	14,500
05.010-30-LU-2	UR10 1'500 bar / 22'000 psi	1/4" UNF	0.5 - 0.6	7.9	2 x 0.55, 2 x 0.50	0.4 x 1.3	ok	ok	0.03	22,000
05.010-40-LM-2	UR10 1'500 bar / 22'000 psi	M7	0.5 - 0.6	10.6	2 x 0.65, 2 x 0.60	0.4 x 1.3	ok	ok	0.03	22,000
05.010-40-LN-1	UR10 1'000 bar / 14'500 psi	1/16" NPT	0.5 - 0.6	8.7	2 x 0.65, 2 x 0.60	0.4 x 1.3	ok	ok	0.03	14,500
05.010-40-LU-2	UR10 1'500 bar / 22'000 psi	1/4" UNF	0.5 - 0.6	10.5	2 x 0.65, 2 x 0.60	0.4 x 1.3	ok	ok	0.03	22,000

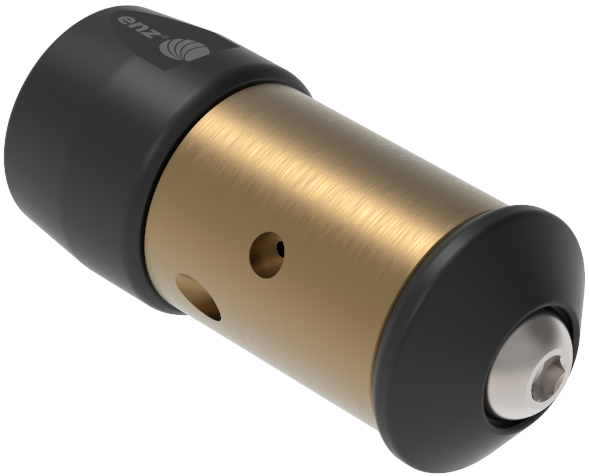

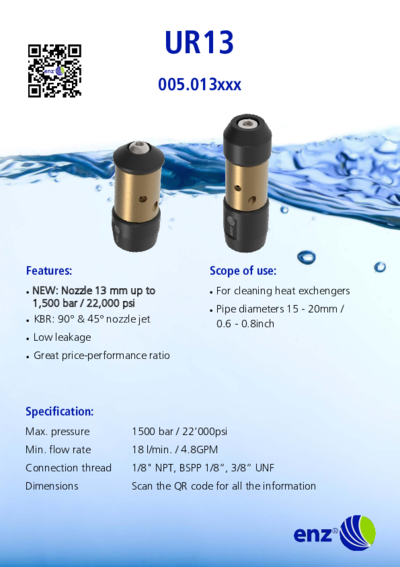

UR13

Item number	Item name
05.013-20-2	UR13 1'500 bar / 22'000 psi	1/8" BSPP	0.6 - 0.8	5.3	2 x 0.45, 2 x 0.45	0.5 x 1.2	ok	ok	0.04	22,000
05.013-20-N-1	UR13 1'000 bar / 14'500 psi	1/8" NPT	0.6 - 0.8	4.8	2 x 0.45, 2 x 0.45	0.5 x 1.2	ok	ok	0.04	14,500
05.013-20-UB-2	UR13 1'500 bar / 22'000 psi	3/8" UNF	0.6 - 0.8	5.3	2 x 0.45, 2 x 0.45	0.5 x 1.2	ok	ok	0.04	22,000
05.013-30-2	UR13 1'500 bar / 22'000 psi	1/8" BSPP	0.6 - 0.8	7.9	2 x 0.55, 2 x 0.50	0.5 x 1.2	ok	ok	0.04	22,000
05.013-30-N-1	UR13 1'000 bar / 14'500 psi	1/8" NPT	0.6 - 0.8	6.6	2 x 0.55, 2 x 0.50	0.5 x 1.2	ok	ok	0.04	14,500
05.013-30-UB-2	UR13 1'500 bar / 22'000 psi	3/8" UNF	0.6 - 0.8	7.9	2 x 0.55, 2 x 0.50	0.5 x 1.2	ok	ok	0.04	22,000
05.013-40-2	UR13 1'500 bar / 22'000 psi	1/8" BSPP	0.6 - 0.8	10.6	2 x 0.65, 2 x 0.60	0.5 x 1.2	ok	ok	0.04	22,000
05.013-40-N-1	UR13 1'000 bar / 14'500 psi	1/8" NPT	0.6 - 0.8	8.7	2 x 0.65, 2 x 0.60	0.5 x 1.2	ok	ok	0.04	14,500
05.013-40-UB-2	UR13 1'500 bar / 22'000 psi	3/8" UNF	0.6 - 0.8	10.6	2 x 0.65, 2 x 0.60	0.5 x 1.2	ok	ok	0.04	22,000

UR13 Long

Item number	Item name
05.013-20-L-2	UR13 1'500 bar / 22'000 psi	1/8" BSPP	5.3	5.3	2 x 0.45, 2 x 0.45	0.5 x 1.6	ok	ok	0.07	22,000
05.013-20-LN-1	UR13 1'000 bar / 14'500 psi	1/8" NPT	0.6 - 0.8	4.8	2 x 0.45, 2 x 0.45	0.5 x 1.6	ok	ok	0.07	14,500
05.013-20-LUB-2	UR13 1'500 bar / 22'000 psi	3/8" UNF	0.6 - 0.8	5.3	2 x 0.45, 2 x 0.45	0.5 x 1.6	ok	ok	0.07	22,000
05.013-30-L-2	UR13 1'500 bar / 22'000 psi	1/8" BSPP	0.6 - 0.8	7.9	2 x 0.55, 2 x 0.50	0.5 x 1.6	ok	ok	0.07	22,000
05.013-30-LN-1	UR13 1'000 bar / 14'500 psi	1/8" NPT	0.6 - 0.8	6.6	2 x 0.55, 2 x 0.50	0.5 x 1.6	ok	ok	0.07	14,500
05.013-30-LUB-2	UR13 1'500 bar / 22'000 psi	3/8" UNF	0.6 - 0.8	7.9	2 x 0.55, 2 x 0.50	0.5 x 1.6	ok	ok	0.07	22,000
05.013-40-L-2	UR13 1'500 bar / 22'000 psi	1/8" BSPP	0.6 - 0.8	10.6	2 x 0.65, 2 x 0.60	0.5 x 1.6	ok	ok	0.07	22,000
05.013-40-LN-1	UR13 1'000 bar / 14'500 psi	1/8" NPT	0.6 - 0.8	8.7	2 x 0.65, 2 x 0.60	0.5 x 1.6	ok	ok	0.07	14,500
05.013-40-LUB-2	UR13 1'500 bar / 22'000 psi	3/8" UNF	0.6 - 0.8	10.6	2 x 0.65, 2 x 0.60	0.5 x 1.6	ok	ok	0.07	22,000

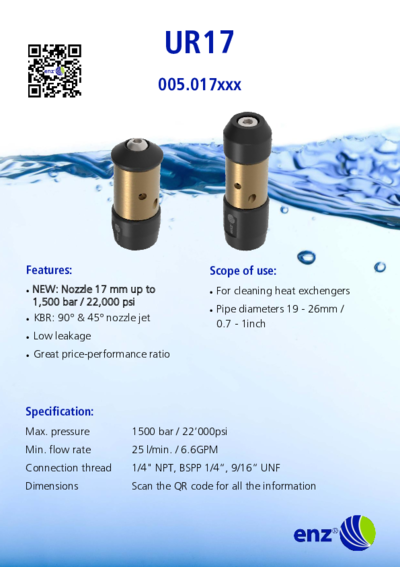

UR17

Item number	Item name
05.017-30-B-2	UR17 1'500 bar / 22'000 psi	1/4" BSPP	0.7 - 1	7.9	2 x 0.50, 2 x 0.50	*	0.7 x 1.5	ok	ok	0.1	22,000
05.017-30-NB-1	UR17 1'000 bar / 14'500 psi	1/4" NPT	0.7 - 1	6.6	2 x 0.50, 2 x 0.50	*	0.7 x 1.5	ok	ok	0.1	14,500
05.017-30-UC-2	UR17 1'500 bar / 22'000 psi	9/16" UNF	0.7 - 1	7.9	2 x 0.50, 2 x 0.50	*	0.7 x 1.5	ok	ok	0.1	22,000
05.017-50-B-2	UR17 1'500 bar / 22'000 psi	1/4" BSPP	0.7 - 1	13.2	2 x 0.70, 2 x 0.65	*	0.7 x 1.5	ok	ok	0.1	22,000
05.017-50-NB-1	UR17 1'000 bar / 14'500 psi	1/4" NPT	0.7 - 1	10.6	2 x 0.70, 2 x 0.65	*	0.7 x 1.5	ok	ok	0.1	14,500
05.017-50-UC-2	UR17 1'500 bar / 22'000 psi	9/16" UNF	0.7 - 1	13.2	2 x 0.70, 2 x 0.65	*	0.7 x 1.5	ok	ok	0.1	22,000

UR17 Long

Item number	Item name
05.017-30-LB-2	UR17 1'500 bar / 22'000 psi	1/4" BSPP	0.7 - 1	7.9	2 x 0.50, 2 x 0.50	*	0.7 x 2.0	ok	ok	0.2	22,000
05.017-30-LNB-1	UR17 1'000 bar / 14'500 psi	1/4" NPT	0.7 - 1	6.6	2 x 0.50, 2 x 0.50	*	0.7 x 2.0	ok	ok	0.2	14,500
05.017-30-LUC-2	UR17 1'500 bar / 22'000 psi	9/16" UNF	0.7 - 1	7.9	2 x 0.50, 2 x 0.50	*	0.7 x 2.0	ok	ok	0.2	22,000
05.017-50-LB-2	UR17 1'500 bar / 22'000 psi	1/4" BSPP	0.7 - 1	13.2	2 x 0.70, 2 x 0.65	*	0.7 x 2.0	ok	ok	0.2	22,000
05.017-50-LNB-1	UR17 1'000 bar / 14'500 psi	1/4" NPT	0.7 - 1	10.6	2 x 0.70, 2 x 0.65	*	0.7 x 2.0	ok	ok	0.2	14,500
05.017-50-LUC-2	UR17 1'500 bar / 22'000 psi	9/16" UNF	0.7 - 1	13.2	2 x 0.70, 2 x 0.65	*	0.7 x 2.0	ok	ok	0.2	22,000

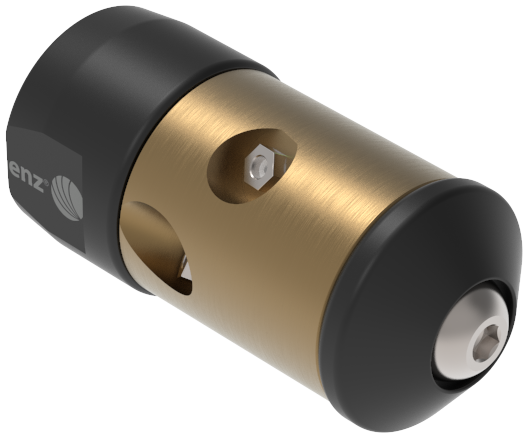

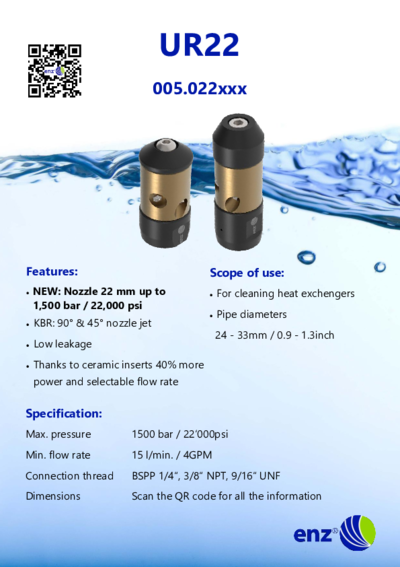

UR22

Item number	Item name
05.022-A-2	UR22 1'500 bar / 22'000 psi	1/4" BSPP	1 - 1.3	6.1	2 x M4, 2 x M4	*	0.9 x 1.9	ok	ok	0.2	22,000
05.022-NB-1	UR22 1'000 bar / 14'500 psi	3/8" NPT	1 - 1.3	4.5	2 x M4, 2 x M4	*	0.9 x 1.9	ok	ok	0.2	14,500
05.022-UB-2	UR22 1'500 bar / 22'000 psi	9/16" UNF	1 - 1.3	6.1	2 x M4, 2 x M4	*	0.9 x 1.9	ok	ok	0.2	22,000

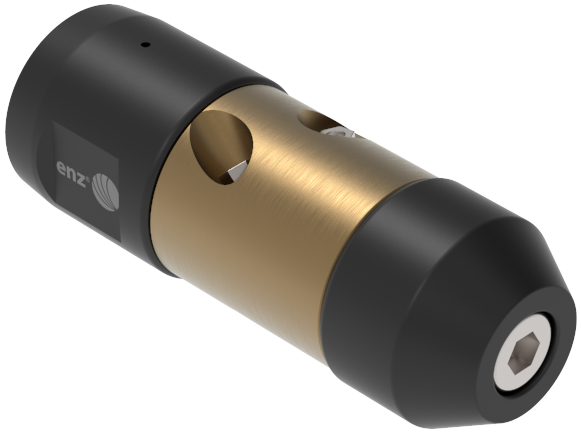

UR22 Long

Item number	Item name
05.022-LA-2	UR22 1'500 bar / 22'000 psi	1/4" BSPP	1 - 1.3	6.1	2 x M4, 2 x M4	*	0.9 x 2.5	ok	ok	0.4	22,000
05.022-LNB-1	UR22 1'000 bar / 14'500 psi	3/8" NPT	1 - 1.3	4.5	2 x M4, 2 x M4	*	0.9 x 2.5	ok	ok	0.4	14,500
05.022-LUB-2	UR22 1'500 bar / 22'000 psi	9/16" UNF	1 - 1.3	6.1	2 x M4, 2 x M4	*	0.9 x 2.5	ok	ok	0.4	22,000

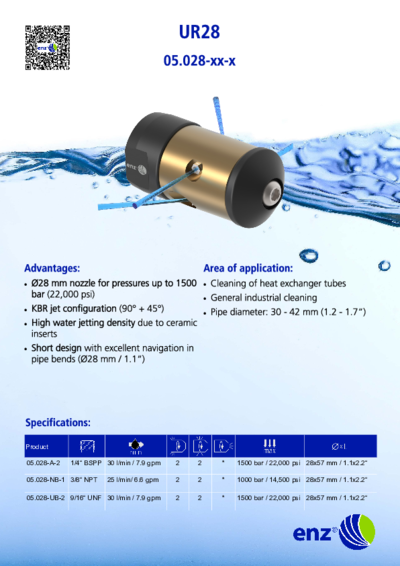

UR28

Item number	Item name
05.028-A-2	UR28 1'500 bar / 22'000 psi	1/4" BSPP	1.2 - 1.7	7.9	2 x M4, 2 x M4	*	1.1 x 2.2	ok	ok	0.4	22,000
05.028-NB-1	UR28 1'500 bar / 22'000 psi	3/8" NPT	1.2 - 1.7	6.6	2 x M4, 2 x M4	*	1.1 x 2.2	ok	ok	0.4	14,500
05.028-UB-2	UR28 1'500 bar / 22'000 psi	9/16" UNF	1.2 - 1.7	7.9	2 x M4, 2 x M4	*	1.1 x 2.2	ok	ok	0.4	22,000
