UB360

UB360

UB360
  Item number Item name
505.060

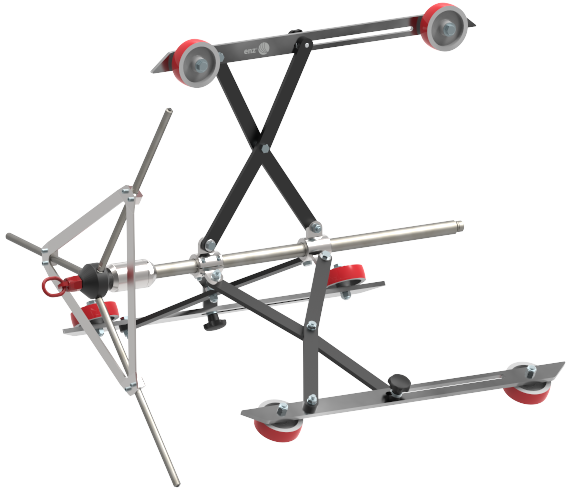

Propeller nozzle UHP max. 14'500 psi

 M24 x 1.5 11.8 - 43.3 10.6 6 / 3 x M8 11.8 x 39.5 35.27 14,500
Accessory and wearing parts UB360

Accessory and wearing parts UB360
  Item number Item name

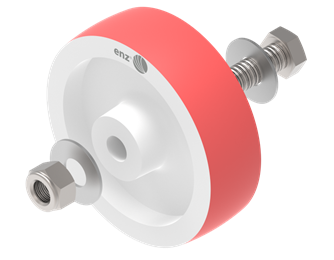

100.0603002

Polyurethane wheel Ø 3.94

 0.34

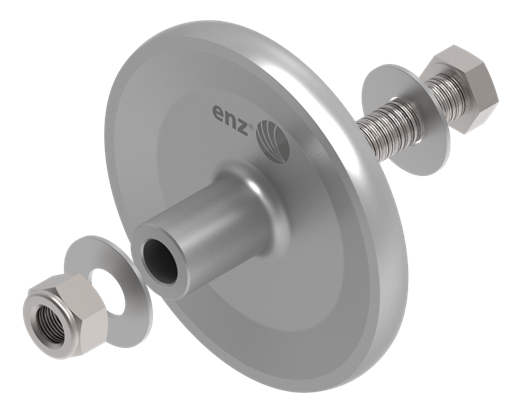

100.0603003

Steel wheel Ø 3.94

 1
100.0603004

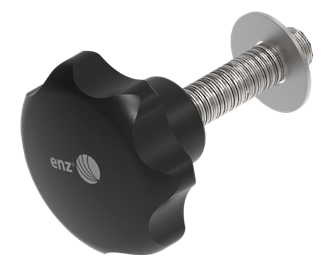

Star grip screw incl. washer

 0.42
100.0603005

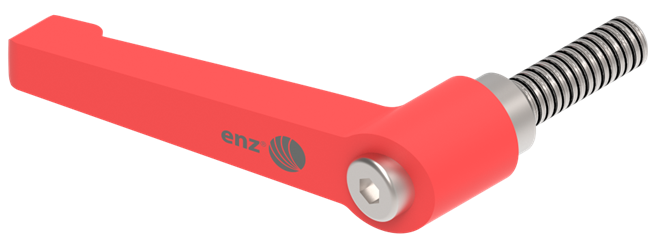

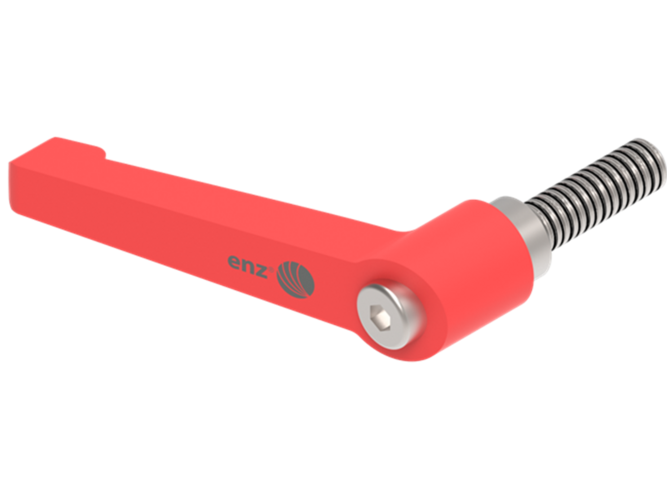

Hand lever (Jaccard handle) incl. washer

 0.12

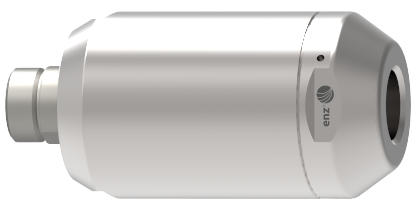

00500.060

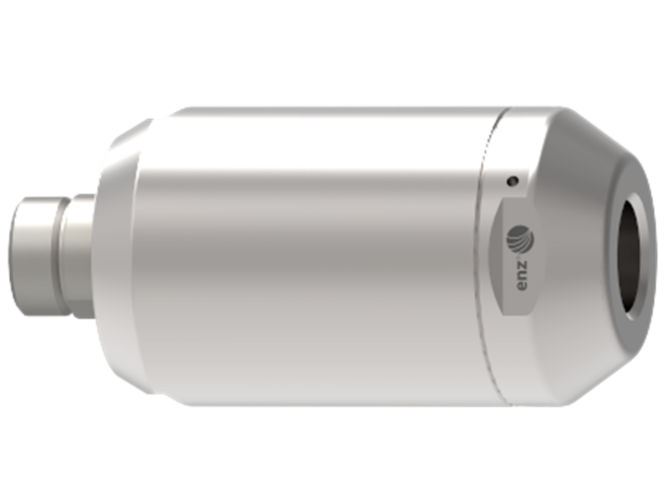

Swivel 60

 M24 x 1.5 3 - 6 11 6 x M6 2.4 x 7.3 5.3 14,500
500.06009050

Set propeller tube 2"

 5.5 - 12 0.397 15,000

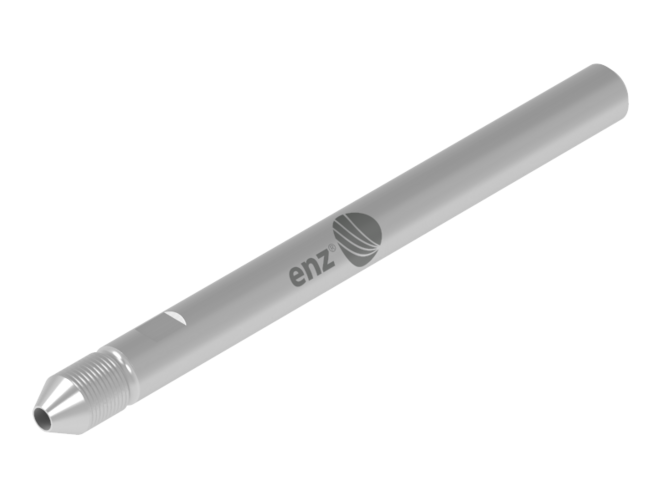

500.06009120

Set propeller tube 4.7"

 12 - 18 0.441 15,000
500.06009200

Set propeller tube 7.8"

 18 - 26 1.764 15,000
500.06009300

Set propeller tube 11.8"

 26 - 34 1.764 15,000
500.06009400

Set propeller tube 15.7"

 34 - 47 3.593 15,000
00500.0605003

Propeller head RGS 3mm Bulldog 60

 11 14,500
00500.0605007

Propeller head RGS 7mm Bulldog 60

 21.1 14,500
00500.0605012

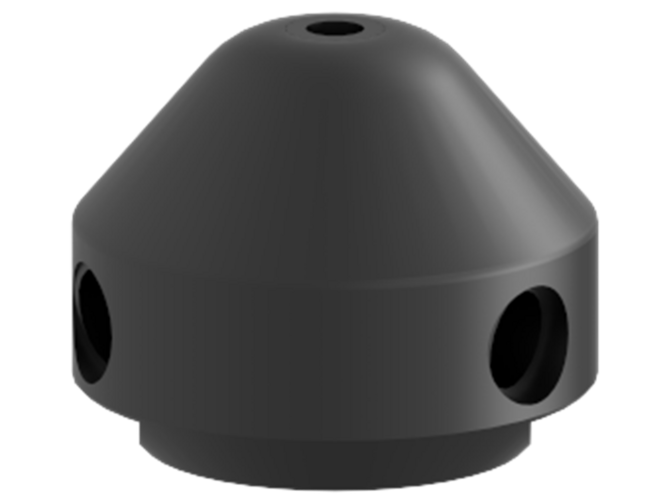

Propeller head RGS 11.5mm Bulldog 60

 37 14,500
00500.0608N

Thrust part

 M24 x 1.5, 1/2" NPT 6 x M6 1.5 x 2.5 0.69 14,500

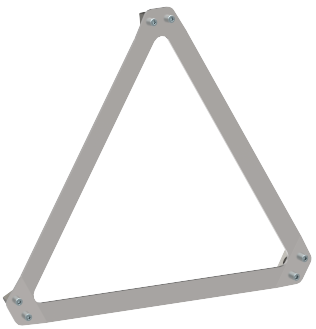

00500.0609

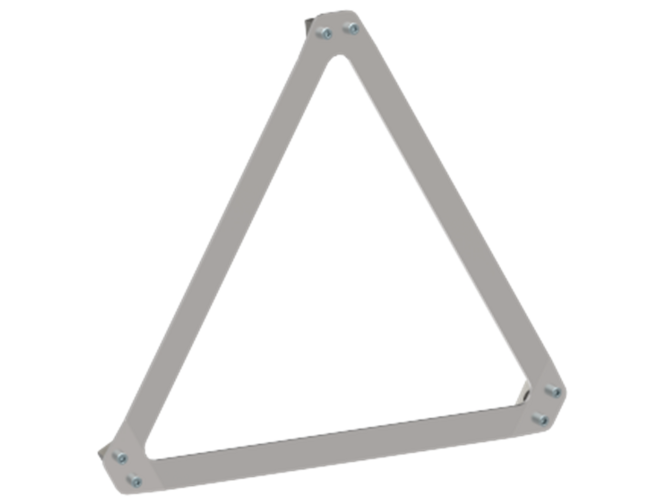

Triangle strut
500.060300J

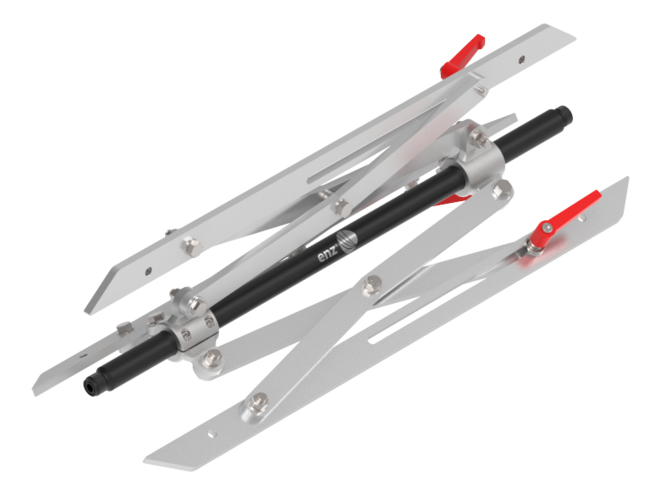

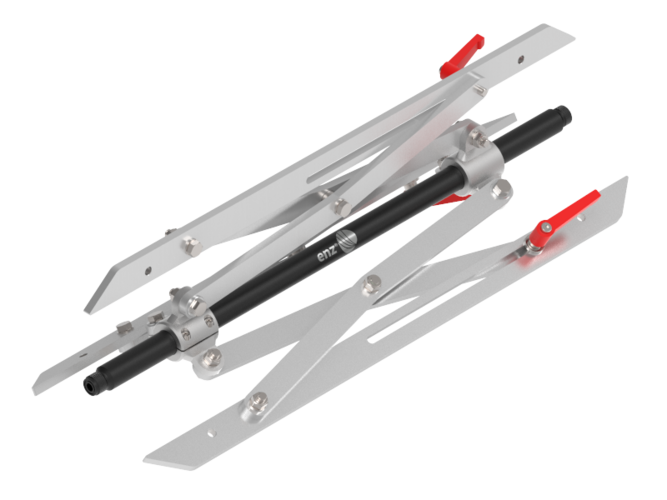

Scissors skid with hand lever

 M24 x 1.5 12 - 43 12 - 43 x 30 21.1 15,000
500.060300JP

Scissors skid with polyurethane wheels

 M24 x 1.5 12 - 43 12 - 43 x 30 23.8 15,000

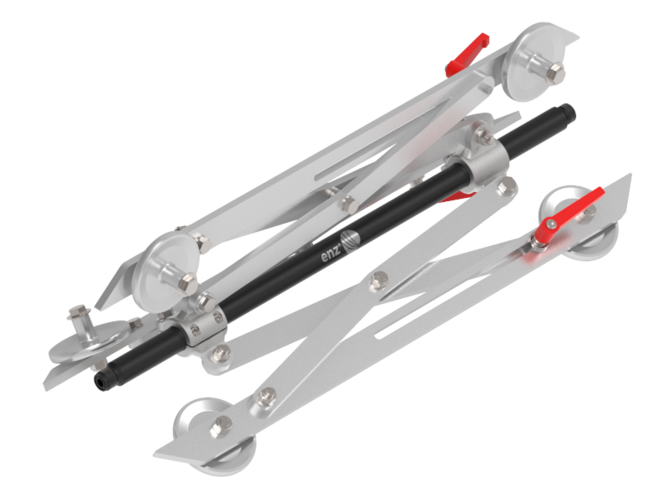

500.060300JS

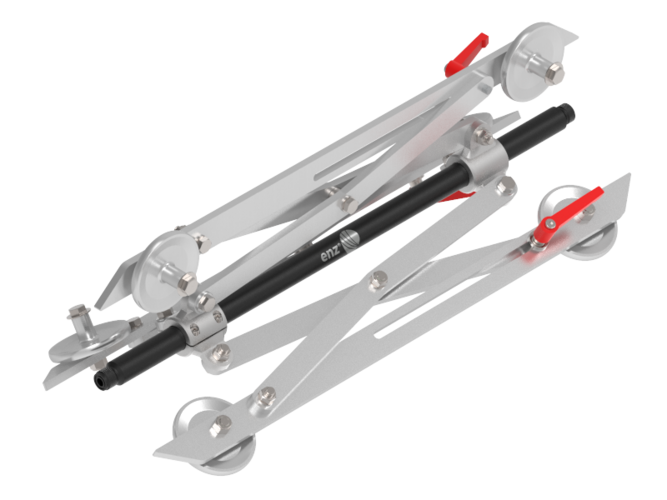

Scissors skid with steel wheels

 M24 x 1.5 12 - 43 12 - 43 x 30 22.5 15,000

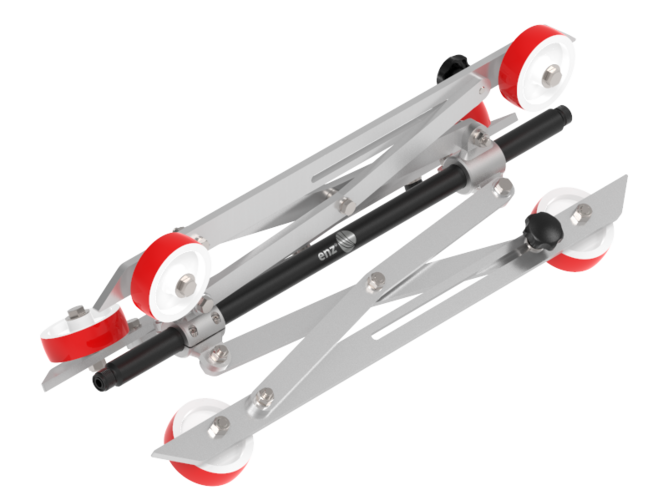

500.060300P

Scissors skid with polyurethane wheels

 M24 x 1.5 12 - 43 12 - 43 x 30 24.7 15,000

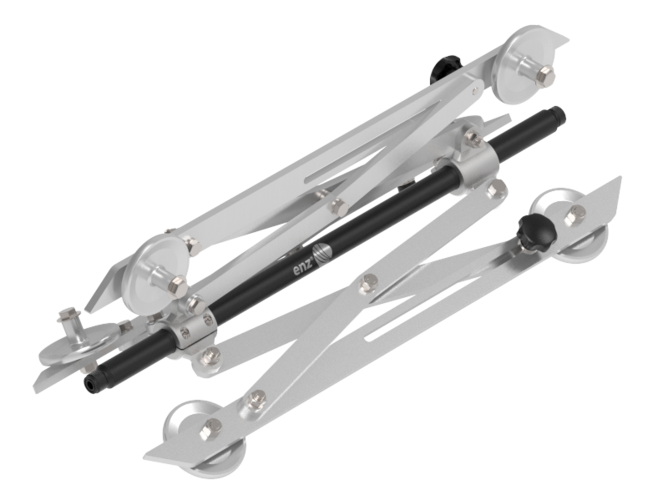

500.060300S

Scissors skid with steel wheels

 M24 x 1.5 12 - 43 12 - 43 x 30 23.3 15,000
C360

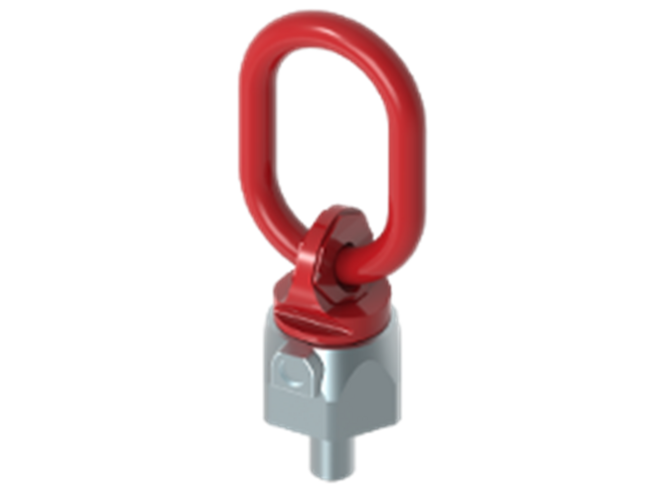

Pulling eye M10

 0.132
