Milling cutters without impacts

These enz® rotating cutters work without impacts. The cutter heads are equipped with hard metal plates, which are able to remove the most any kind of deposits. Their field of application is versatile. Layers of mineral deposits, concrete or concrete sludges can be milled out with them as well as roots and wood.

Applications

Concrete or concrete sludges
Layers of mineral deposits
Roots, wood

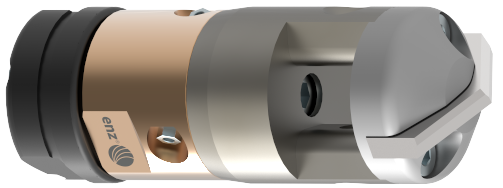

Cutters without impacts 1/4"

	Item number	Item name

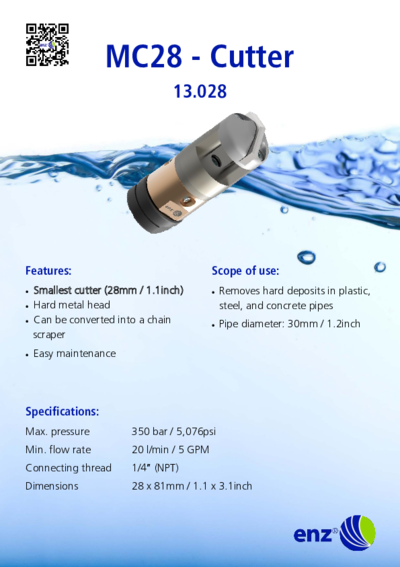

	13.028N	Milling Cutter 1.1"	1/4" NPT	1.2	5	3 x M4	3 x M4	1.1 x 3.2	0.6	5,000

Cutters without impacts 1/2" - 1"

Item number	Item name
13.040TR	Milling Cutter 1.6"	1/2"	1.7 - 2.4	8	2 x M6	4 x M6	-	1.6 x 4.3	1.65	ok	3,600

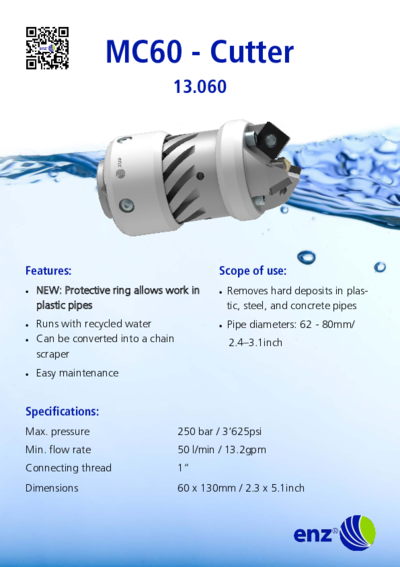

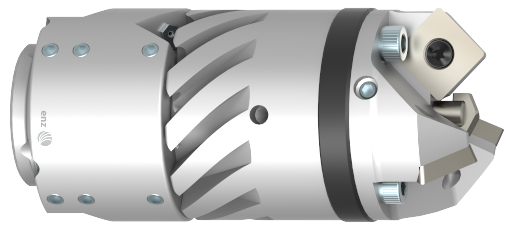

13.060TR	Milling Cutter 2.4"	1"	2.4 - 3.1	13	2 x M6	4 x M8	-	2.4 x 5.1	4.40	ok	3,600

Accessory and wearing parts cutters without impacts

Item number		Item name
0013.0404TR-48	Wear resistant ring for Milling Cutter 40 mm	Wear resistant ring for Milling Cutter 40 mm		0.15

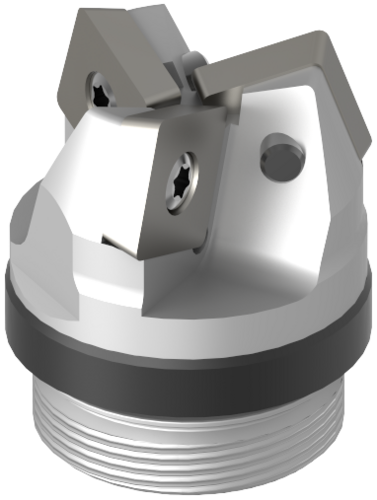

0013.0405TR	Milling Cutter Head complete for 1.6"	Milling Cutter Head complete for 1.6"	2 - 2	0.66
0013.0407TR-48	Wear ring for Milling Cutter 40 mm	Wear ring for Milling Cutter 40 mm		0.23
0013.0604TR-68	Wear resistant ring	Wear resistant ring		0.28
0013.0605TR	Milling Cutter Head 2.4"	Milling Cutter Head 2.4"	2 - 3	1.43
0013.0606TR	exchangeble centre for Ø60 Cutter	exchangeble centre for Ø60 Cutter		0.022
0013.0607TR-68	Wear ring for Milling Cutter 60mm	Wear ring for Milling Cutter 60mm		0.28
16.16Z	Carbide Insert with Screw for 13.040TR	Carbide Insert with Screw for 13.040TR		0.06
16.19Z	Carbide Insert with Screw for 13.060TR	Carbide Insert with Screw for 13.060TR		0.06

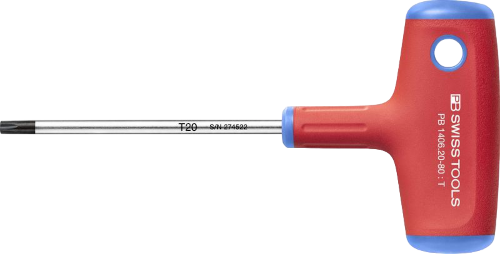

C20	Torx 20	Torx 20
FS1010	Insert-Clamp-Screw for 16.19ZW	Insert-Clamp-Screw for 16.19ZW
FS242	Insert-Clamp-Screw for 16.16ZW	Insert-Clamp-Screw for 16.16ZW
