360° Grenade-bombs

This enz® jet nozzle is made of wear-resistant hardened steel. The grenade and the bomb are joined in the same nozzles. Different jet angles perform together strong traction and effective cleaning. The high efficiency is reached by appropriate water guidance.

For optimal all-around cleaning all nozzles are equipped with fan-jet ceramic-steel inserts.

Applications

For removal of loose rubble stone, gravel and soft deposits
For a previous cleaning before the use of chain flail head or cutter
For an all-around cleaning

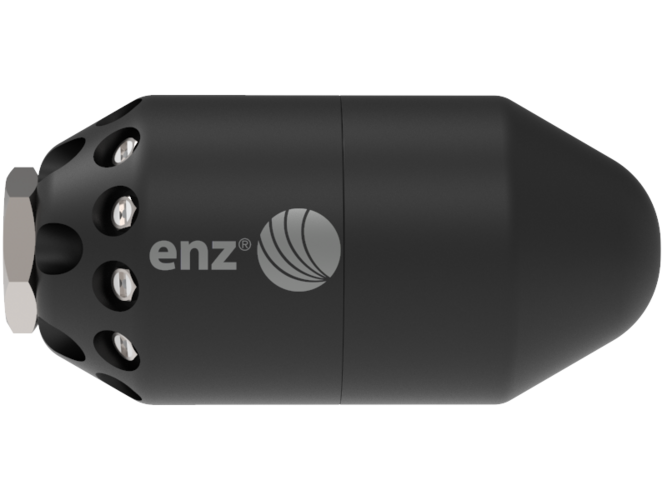

enz® 360° Grenade-Bomb

360° Grenade-bombs 1/2" - 3/4"

Item number	Item name
42.050	360° Granat-Bomb	1/2"	2 - 6	7.9	6 x M8	1 x M8	25°	1.9 x 3.5	1.89	ok	7,200
42.075A	360° Granat-Bomb	1/2"	3 - 8	13	8 x M8	1 x M8	10° + 30°	2.3 x 4.6	3.37	ok	7,200
42.075B	360° Granat-Bomb	3/4"	3 - 8	26	8 x M8	1 x M8	10° + 30°	2.3 x 4.6	3.37	ok	7,200

360° Grenade-bombs 1" - 1 1/4"

Item number	Item name
42.100A	360° Grenade - bomb	1"	6 - 12	50	12 x M10	1 x M10	10° + 30°	3.1 x 6.9	10.2	ok	3,600
42.100B-12	360° Grenade - bomb	1"	6 - 16	50	12 x M10	1 x M10	10° + 45°	3.9 x 7.2	17	ok	3,600
42.100B-18	360° Grenade - bomb	1"	6 - 16	80	18 x M10	1 x M10	10° + 45°	3.9 x 7.2	17	ok	3,600
42.100C-12	360° Grenade - bomb	1 1/4"	6 - 16	50	12 x M10	1 x M10	10° + 45°	3.9 x 8.1	17	ok	3,600
42.100C-18	360° Grenade - bomb	1 1/4"	6 - 16	80	18 x M10	1 x M10	10° + 45°	3.9 x 8.1	17	ok	3,600
42.125A	360° Grenade - bomb	1 1/4"	12 - 24	80	10 x M10	1 x M10	10° + 30°	4.3 x 8.7	23.15	ok	3,600
