Rotopuls nozzles 1/8" - 1/4"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 04.016AE06 |
ROTOPULS vibrating nozzle 16mm |
1/8" | 25 - 90 | 9 | 45°: 2 x 0.60, 90°: 2 x 0.60 | - | * | 22 x 29 | 0.03 | 350 | |
| 04.016AE08 |
ROTOPULS vibrating nozzle 16mm |
1/8" | 25 - 90 | 14 | 45°: 2 x 0.80, 90°: 2 x 0.80 | - | * | 22 x 29 | 0.03 | 350 | |
| 04.016AE10 |
ROTOPULS vibrating nozzle 16mm |
1/8" | 25 - 90 | 21 | 45°: 2 x 1.00, 90°: 2 x 1.00 | - | * | 22 x 29 | 0.03 | 350 | |
| 04.016AES08 |
ROTOPULS vibrating nozzle 16mm |
1/8" | 25 - 90 | 24 | 45°: 2 x 0.80, 90°: 2 x 0.80 | 3 x 0.80 | * | 22 x 31 | 0.03 | 350 | |
| 04.016AES10 |
ROTOPULS vibrating nozzle 16mm |
1/8" | 25 - 90 | 31 | 45°: 2 x 1.00, 90°: 2 x 1.00 | 3 x 0.80 | * | 22 x 31 | 0.03 | 350 | |
| 04.016BE08 |
ROTOPULS vibrating nozzle 16mm |
1/4" | 25 - 90 | 14 | 45°: 2 x 0.80, 90°: 2 x 0.80 | - | * | 22 x 29 | 0.03 | 350 | |
| 04.016BE10 |
ROTOPULS vibrating nozzle 16mm |
1/4" | 25 - 90 | 21 | 45°: 2 x 1.00, 90°: 2 x 1.00 | - | * | 22 x 29 | 0.03 | 350 | |
| 04.016BES08 |
ROTOPULS vibrating nozzle 16mm |
1/4" | 25 - 90 | 24 | 45°: 2 x 0.80, 90°: 2 x 0.80 | 3 x 0.80 | * | 22 x 31 | 0.03 | 350 | |
| 04.016BES10 |
ROTOPULS vibrating nozzle 16mm |
1/4" | 25 - 90 | 31 | 45°: 2 x 1.00, 90°: 2 x 1.00 | 3 x 0.80 | * | 22 x 31 | 0.03 | 350 |
Rotopuls nozzles 1/8" - 1/4"
Rotopuls nozzles 1/4" - 1 1/4"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 01.028AE |
ROTOPULS vibrating nozzle 28 mm |
1/4" | 30 - 100 | 10 | 2 x M4 | 3 x M4 | * | 28 x 56 | 0.19 | 350 | |
| 02.028AE |
ROTOPULS vibrating nozzle 28 mm |
1/4" | 30 - 100 | 10 | 2 x M4 | - | - | 28 x 56 | 0.18 | 350 | |
| 02.028BE |
ROTOPULS vibrating nozzle 28 mm |
3/8" | 30 - 100 | 10 | 2 x M4 | - | - | 28 x 61 | 0.15 | 350 | |
| 04.040AE |
ROTOPULS vibrating nozzle 40 mm |
1/2" | 70 - 150 | 20 | 4 x M4 | 3 x M6 | * | 40 x 81 | 0.52 | 350 | |
| 04.050AE |
ROTOPULS vibrating nozzle 50 mm |
1/2" | 100 - 200 | 70 | 4 x M6 | 3 x M6 | * | 50 x 96 | 0.60 | 350 | |
| 04.050BE |
ROTOPULS vibrating nozzle 50 mm |
3/4" | 100 - 200 | 70 | 4 x M6 | 3 x M6 | * | 50 x 99 | 0.98 | 250 | |
| 04.060EK |
ROTOPULS vibrating nozzle 60 mm |
1" | 100 - 300 | 100 | 4 x M6 | 3 x M8 | * | 60 x 111 | 1.60 | 250 | |
| 04.100AE |
ROTOPULS vibrating nozzle 100 mm |
1" | 200 - 600 | 200 | 4 x M10 | 3 x M10 | * | 100 x 175 | 7.20 | 250 | |
| 04.100BE |
ROTOPULS vibrating nozzle 100 mm |
1 1/4" | 200 - 600 | 200 | 4 x M10 | 3 x M10 | * | 100 x 175 | 7.20 | 250 |
Rotopuls nozzles 1/4" - 1 1/4"
Rotopuls nozzles 3/8" - 1/2"
| Item number | Item name |
|
|
|
|
|
|
|
|
|
|
| 01.030AE |
ROTOPULS vibrating nozzle 30 mm |
1/4" | 40 - 100 | 10 | 2 x M4 | 3 x M4 | - | 30 x 49 | 0.15 | 350 | |
| 01.034AE |
ROTOPULS vibrating nozzle 34 mm |
3/8" | 45 - 150 | 20 | 2 x M4 | 3 x M4 | * | 34 x 57.5 | 0.22 | 350 | |
| 01.034BE |
ROTOPULS vibrating nozzle 34 mm |
1/2" | 45 - 150 | 20 | 2 x M4 | 3 x M4 | * | 34 x 57.5 | 0.21 | 350 | |

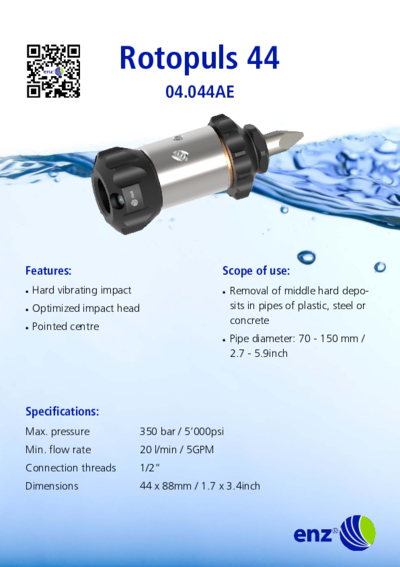

| 04.044AE |
ROTOPULS vibrating nozzle 44 mm |
1/2" | 70 - 150 | 20 | 4 x M4 | 3 x M6 | * | 44 x 91 | 0.60 | 350 | |
| 04.044E |
ROTOPULS vibrating nozzle 44 mm |
3/8" | 70 - 150 | 20 | 4 x M4 | 3 x M6 | * | 44 x 91 | 0.60 | 350 |
Rotopuls nozzles 3/8" - 1/2"
Accessory and wearing parts Rotopuls
| Item number | Item name |
|
|
|
|
|||
| 004.0444E |
Centre spire for ROTOPULS 04.044AE
|
Centre spire for ROTOPULS 04.044AE |
12 x 30 | 0.02 | ||||
| 95.F100M075150 |
Reduction hose
|
Reduction hose |
3/4" m - 1" f | 15.9mm x 1.36m, Ø In 15.9mm Ø Out 24.6mm | 1.12 | 200 |
Accessory and wearing parts Rotopuls
