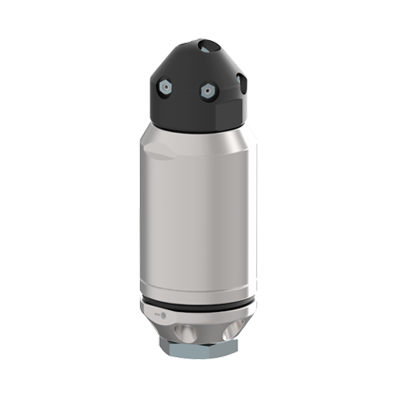

Manhole nozzles

The enz® manhole nozzles are specifically designed for cleaning shafts and vertical pipes. The forward facing water jets provide circumferential cleaning without stripes. The nozzles are self-centering during operation and do not have protruding parts that can cause the nozzle to become wedged on the access ladder. They clean with a front jet on the floor as well and require little space in the cleaning vehicle. Additional advantages include the manhole nozzles having no water loss from leaks and require practically no maintenance. The arduous cleaning with a hand nozzle or a lance is history with the manhole nozzle. Likewise, conical shafts can be cleaned easily.

Advantages

Circumferential cleaning of vertical pipes such as shafts or fountains
Thorough cleaning even of very deep shafts

Cleaning manholes with the enz® manhole nozzle

Manhole nozzle - Cleaning lift stations

enz® Manhole nozzle: Pump & lift station cleaning/Schachtreinigungsdüse

enz® - Bulldog® Manhole nozzle - Schachtreinigung

Manhole nozzles 1/2" - 3/4"

Item number	Item name

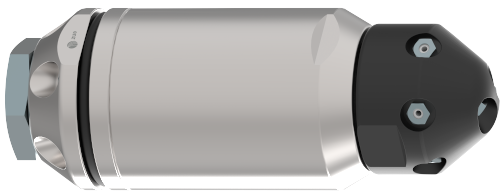

403.060A	BULLDOG Manhole Nozzle 60 mm	1/2"	100 - 1500	100	6 x M8	-	2 x M8	60 x 154	2.07	ok	200
403.060B	BULLDOG Manhole Nozzle 60 mm	3/4"	100 - 1500	100	6 x M8	-	2 x M8	60 x 154	2.07	ok	200

Manhole nozzles 1"

	Item number	Item name

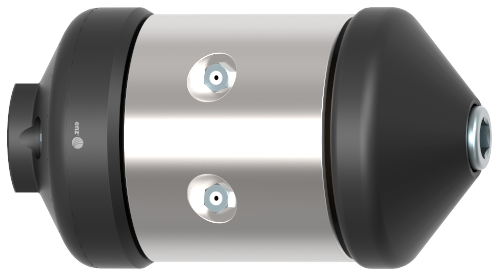

	01.100LS	Manhole Nozzle 100 mm	1"	600 - 1500	100	4 x M10	-	*	100 x 178	7.30	250

Manhole nozzles 1" - 1 1/4"

Item number	Item name

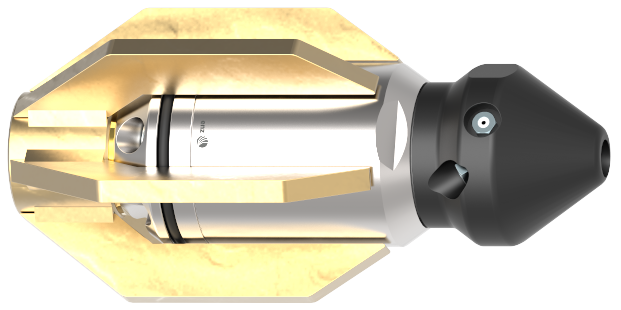

401.101A	BULLDOG Rotating Nozzle 100 mm	1"	250 - 2000	150	6 x M10	-	1 x M10	15°	130 x 260	7.20	ok	200
401.101B	BULLDOG Rotating Nozzle 100 mm	1 1/4"	250 - 2000	150	6 x M10	-	1 x M10	15°	130 x 260	7.20	ok	200
